Tower 10 1137
Tower 10 1137

Tower 10 1137

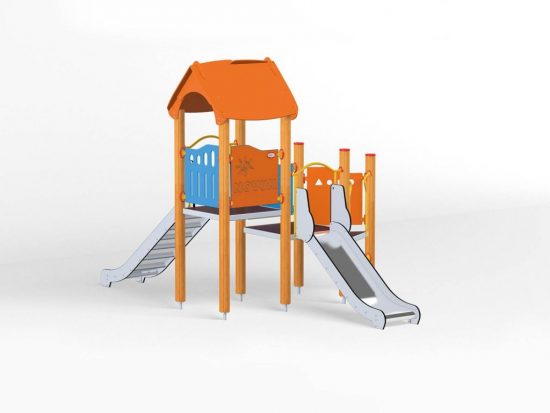

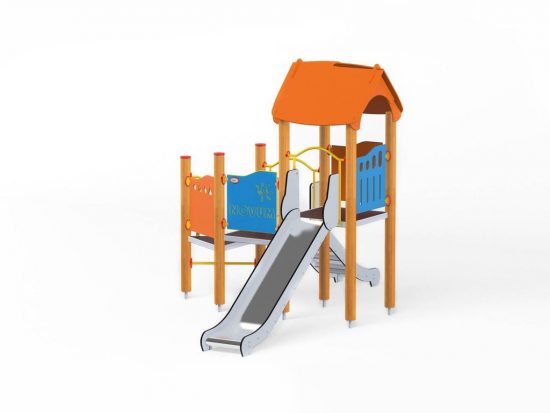

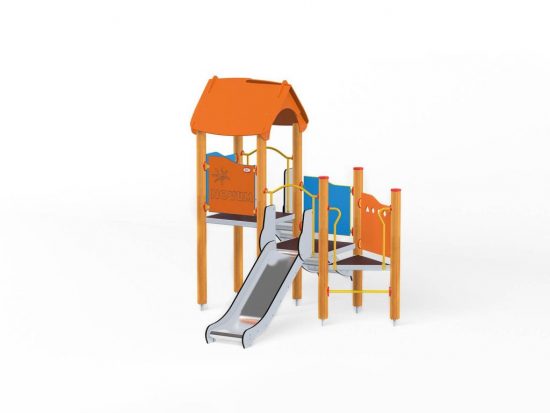

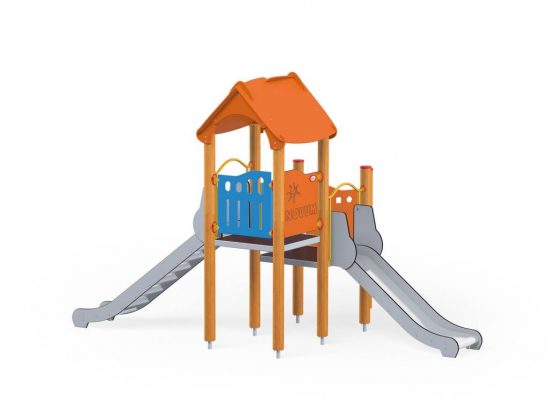

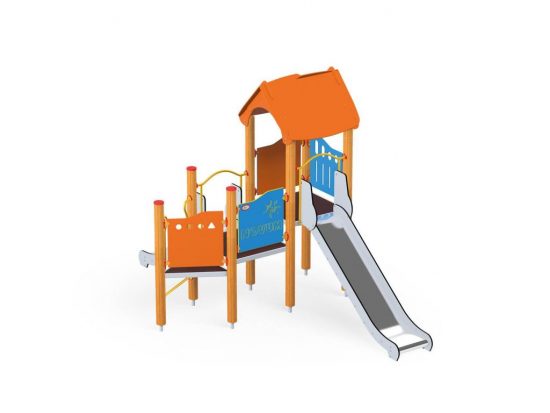

1 tower with gable roof, 1 triangular platform, 1 square platform, 1 deep slide, 1 slide 104, 4 safety HDPE boards with decorative cuts, 1 square landing, ,1 entrance, 1 climbing bar, 1 metal bar over the slide, 7 metal fittings to be installed in the ground

This equipment is also available with hot dip galvanized posts. Prices on request.

Anchoring

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.

Attributes

Rubber tiles

This equepment can be supplied with a rubber tile safty earea.

Artificial grass

For more information about artificial grass click below to read more

Materials

Bearing posts have a diameter of 12 cm and are made of glue-laminated, round, wood, fixed 10 cm above the ground level with metal anchors.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant. All fittings and connectors are weather and UV resistant.
Wood elements are oiled or covered with a colour glaze.
Steel elements are protected against corrosion by zinc primer and powder paint coating.

Attributes

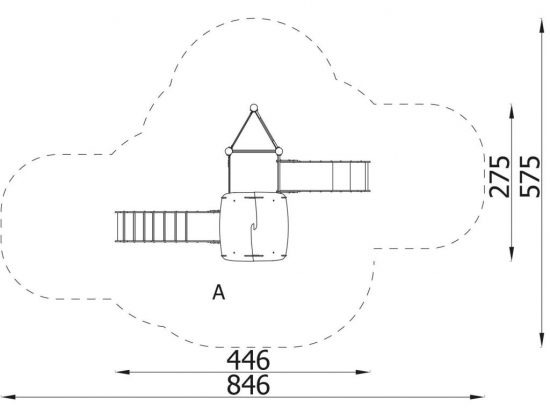

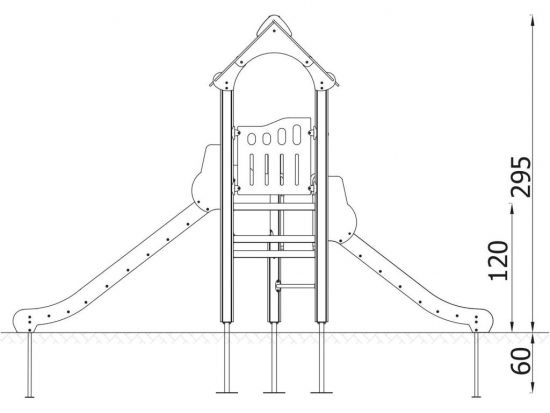

  • Unit measurements (L x B x H)
    446 x 275 x 295 cm
  • Required surface area
    575 x 846 cm
  • Free height of fall
    120 cm
  • Largest part
    80 x 350 cm
