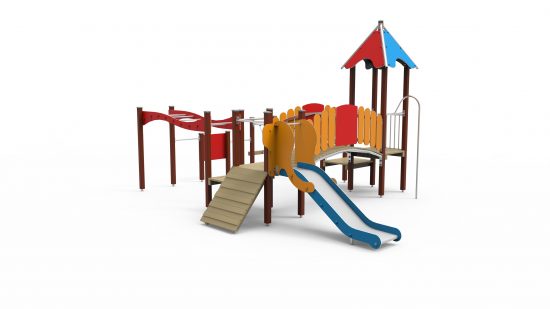

Tomek 20001C

Set Tomek is a multifunctional device, aimed at children in diverse age, which is composed of a et for horizontal ladder, bow bridge, movable bridge, fire pipe, entrance accommodation ladder, a set for the overhead kicks, a slide and towers. As a product from the classic collection is available in glued pinewood. Accomodating Your diverse needs of completing the set with roofs or barriers, which are available in HDPE of high quality. The slides are made of stainless steel.

Components
  • Balcony: 1
  • Coups set: 1
  • Curved bridge: 1
  • Entry gangplank 90cm: 1
  • Fireman’s pole 90cm: 1
  • Horizontal ladder 244cm: 1
  • Mobile bridge: 1
  • Slide 90cm: 1
  • Tower with roof, platform 90cm: 1
  • Tower without roof, platform 60cm: 2
  • Tower without roof, platform 90cm: 1

Attributes

  • Width
    4,87 m
  • Length
    6,17 m

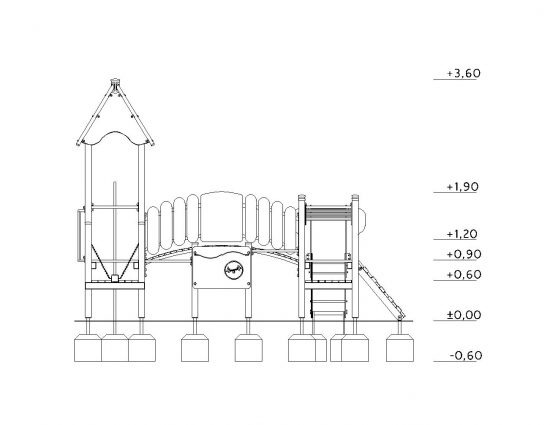

  • Height
    3,60 m

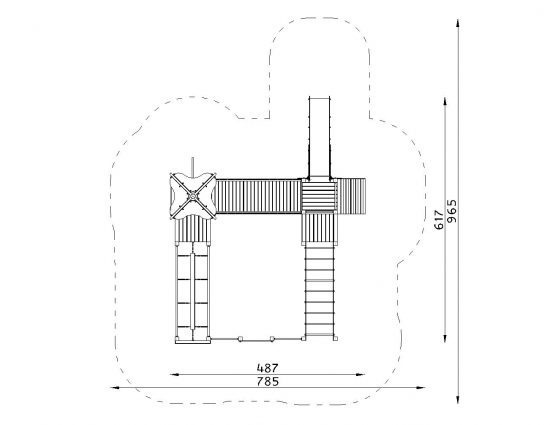

  • Minimum space required
    9,65m x 7,85m
  • HIC
    1.70 m
  • Impact area F
    57.48 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    2,70 x 0,75 x 0,50 m
  • Weight of heaviest item
    60 kg
