Tomek
Tomek

Tomek 20001TM

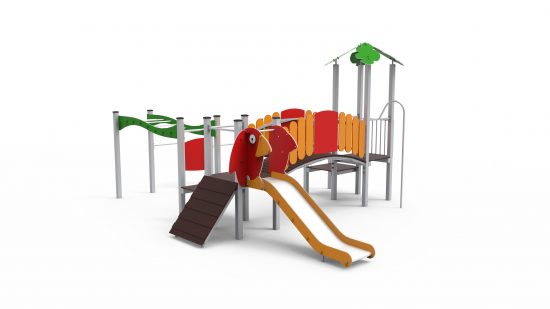

Set Tomek is a multifunctional device, aimed at children in diverse age, which is composed of a horizontal ladder, bow bridge, movable bridge, fire pipe, entrance accommodation ladder, a set for the overhead kicks, a slide and towers. Set from the tropical version is a unique union of interesting colours with high quality of used materials. The set construction is made of galvanized steel painted in grey. Refills are the plastic HDPE of high quality.

Components
  • Balcony: 1
  • Coups set: 1
  • Curved bridge: 1
  • Entry gangplank 90cm: 1
  • Fireman’s pole 90cm: 1
  • Horizontal ladder 244cm: 1
  • Mobile bridge: 1
  • Slide 90cm: 1
  • Tower with roof, platform 90cm: 1
  • Tower without roof, platform 60cm: 2
  • Tower without roof, platform 90cm: 1

Attributes

  • Width
    4,85 m
  • Length
    6,17 m

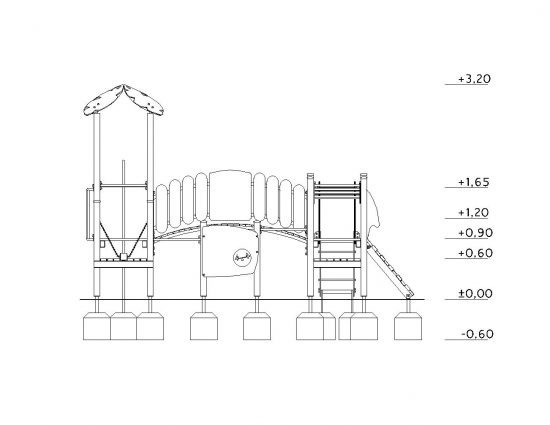

  • Height
    3,20 m

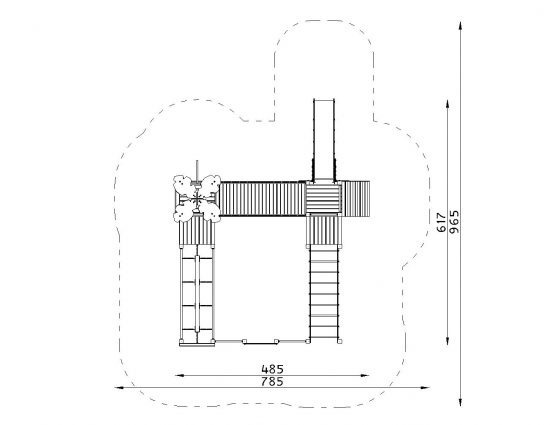

  • Minimum space required
    9,65 m x 7,85 m
  • HIC
    1.70 m
  • Impact area F
    57.48 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    2,70 x 0,75 x 0,50 m
  • Weight of heaviest item
    60 kg
