Tom 20002T

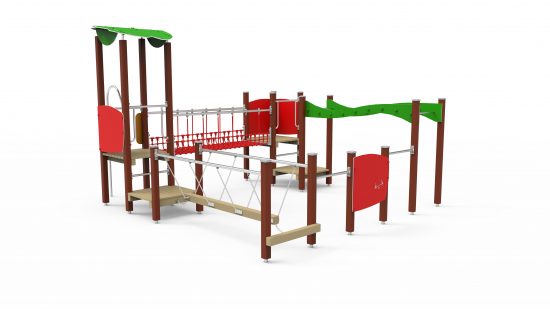

Set Tom is a device created on base of quadrat, composed of horizontal and vertical ladders, rope bridge, movable bridge, fire pipe, roofless towers and covered towers, of set for the overhead kicks. Set from the tropical version is a unique union of interesting colours with high quality of used materials. The set construction is made of pinewood, pasted in a multilayer way, painted in nut-brown colour. Refills are the plastic HDPE of high quality.

Components
  • Coups set: 1
  • Fireman’s pole 90cm: 1
  • Horizontal ladder 244cm: 1
  • Mobile bridge: 1
  • Rope bridge 228 cm: 1
  • Tower with roof, platform 90cm: 1
  • Tower without roof, platform 35cm: 2
  • Vertical ladder: 2

Attributes

  • Width
    4,26 m
  • Length
    4,65 m

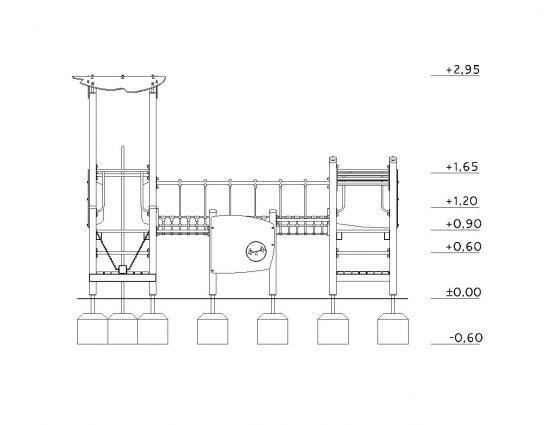

  • Height
    2,95 m

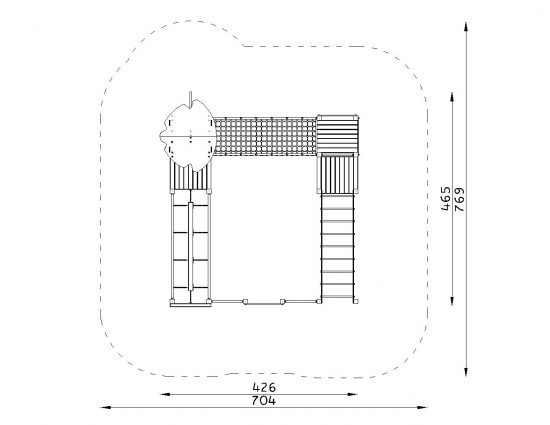

  • Minimum space required
    7,69 m x 7,04 m
  • HIC
    1.70 m
  • Impact area F
    49.10 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    2,40 x 0,70 x 0,30 m
  • Weight of heaviest item
    25 kg
