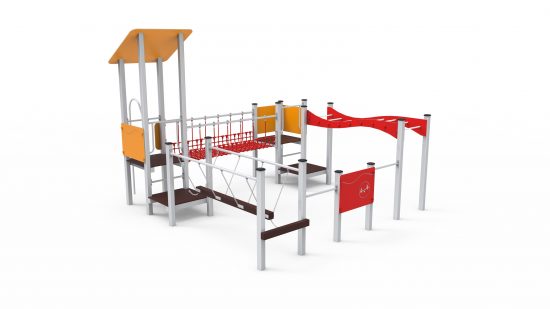

Tom 20002CM

Set Tom is a device created on base of quadrat, composed of horizontal and vertical ladders, rope bridge, movable bridge, fire pipe, roofless towers and covered towers, of set for the overhead kicks. The device construction is made of galvanished steel painted in blue. Refills are the plastic HDPE of high quality and the slides made of stainless steel. For people looking for an economic solution, there is a possibility of changing HDPE with waterproof plywood.

Components
  • Coups set: 1
  • Fireman’s pole 90cm: 1
  • Horizontal ladder 244cm: 1
  • Mobile bridge: 1
  • Rope bridge 228 cm: 1
  • Tower with roof, platform 90cm: 1
  • Tower without roof, platform 35cm: 2
  • Vertical ladder: 2

Attributes

  • Width
    4,21 m
  • Length
    4,65 m
  • Height
    3,25 m

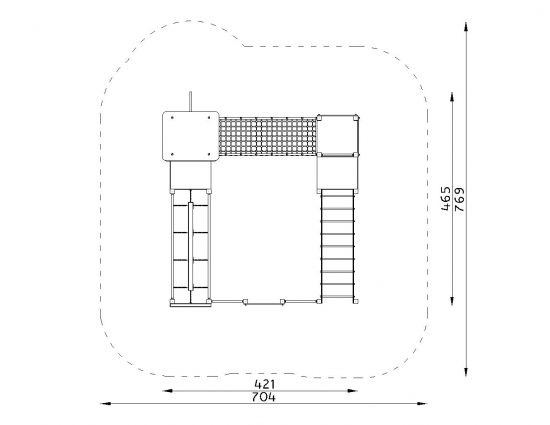

  • Minimum space required
    7,69 m x 7,04 m
  • HIC
    1.65 m
  • Impact area F
    49.10 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    2,40 x 0,70 x 0,30 m
  • Weight of heaviest item
    25 kg
