Playcenter

Tom
Tom

Tom 20002C

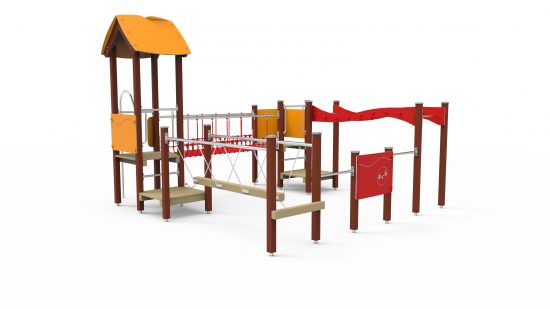

Set Tom is a device created on base of quadrat, composed of horizontal and vertical ladders, rope bridge, movable bridge, fire pipe, roofless towers and covered towers, of set for the overhead kicks. As a product from the classic collection is available in glued pinewood. Accomodating Your diverse needs of completing the set with roofs or barriers, which are available in HDPE of high quality. The slides are made of stainless steel.

Components
  • Coups set: 1
  • Fireman’s pole 90cm: 1
  • Horizontal ladder 244cm: 1
  • Mobile bridge: 1
  • Rope bridge 228 cm: 1
  • Tower with roof, platform 90cm: 1
  • Tower without roof, platform 35cm: 2
  • Vertical ladder: 2

Attributes

  • Width
    4,15 m
  • Length
    4,65 m
  • Height
    3,25 m

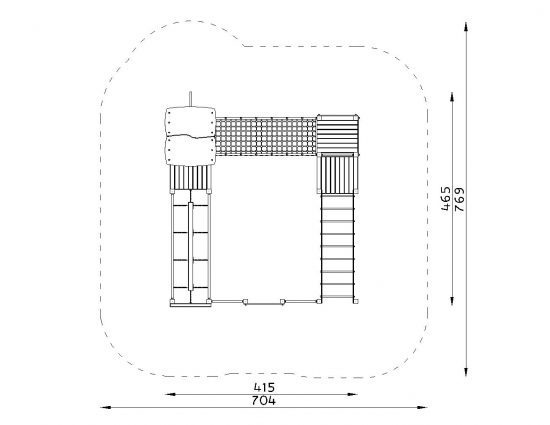

  • Minimum space required
    7,69m x 7,04m
  • HIC
    1.70 m
  • Impact area F
    49.10 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    2,40 x 0,70 x 0,30 m
  • Weight of heaviest item
    25 kg
