Playcenter

Tom
Tom

Tom 20002B

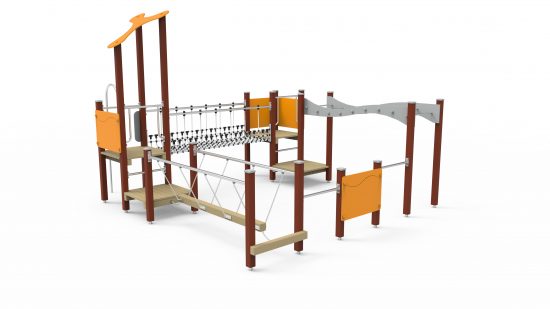

Set Tom is a device created on base of quadrat, composed of horizontal and vertical ladders, rope bridge, movable bridge, fire pipe, roofless towers and covered towers, of set for the overhead kicks. The devices from that collection are characterized with futuristic shapes of roofs, barriers and refills made of plastic HDPE of high quality. The set construction is made of wood, painted in nut-brown colour.

Components
  • Coups set: 1
  • Fireman’s pole 90cm: 1
  • Horizontal ladder 244cm: 1
  • Mobile bridge: 1
  • Rope bridge 228 cm: 1
  • Tower with roof, platform 90cm: 1
  • Tower without roof, platform 35cm: 2
  • Vertical ladder: 2

Attributes

  • Width
    4,15 m
  • Length
    4,65 m

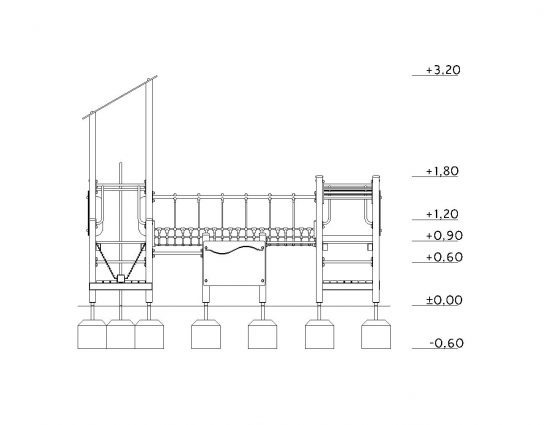

  • Height
    3,20 m

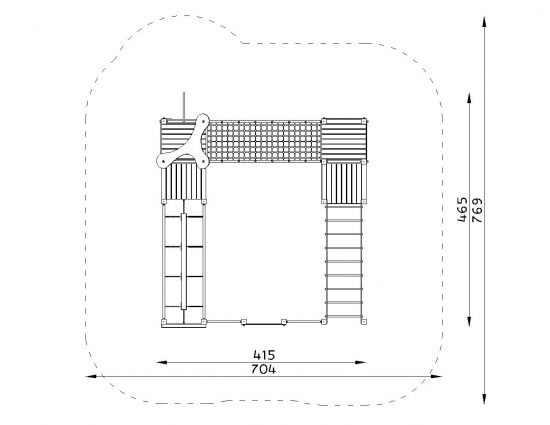

  • Minimum space required
    7,69 m x 7,04 m
  • HIC
    1.70 m
  • Impact area F
    49.10 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    2,40 x 0,70 x 0,30 m
  • Weight of heaviest item
    25 kg
