Szymek 30047TM

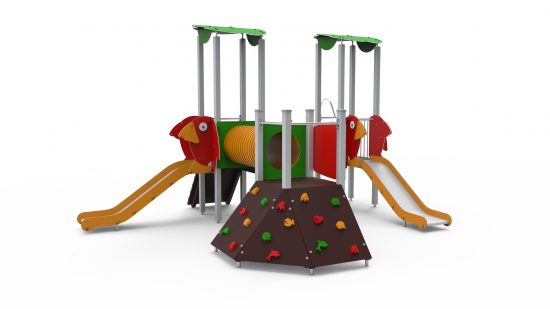

Set Szymek is a multifunctional device, composed of an angular climbing wall, two slides, tube passage and rope passage, fire pipe, a small balcony and entrance accommodation ladder. Set from the tropical version is a unique union of interesting colours with high quality of used materials. The set construction is made of galvanized steel painted in grey. Refills are the plastic HDPE of high quality.

Components
  • Balcony: 1
  • Corner climbing wall 90cm: 1
  • Entry gangplank 90cm: 1
  • Fireman’s pole 90cm: 1
  • Rope bridge: 1
  • Slide 90cm: 2
  • Tower with roof, platform 90cm: 2
  • Tower without roof, platform 90cm: 1
  • Tunnel: 1

Attributes

  • Width
    4,62 m
  • Length
    5,49 m

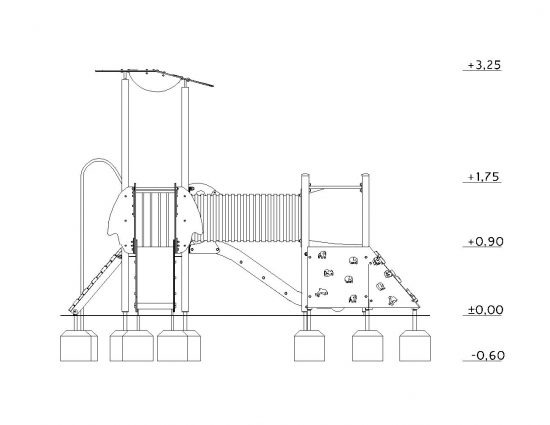

  • Height
    3,25 m

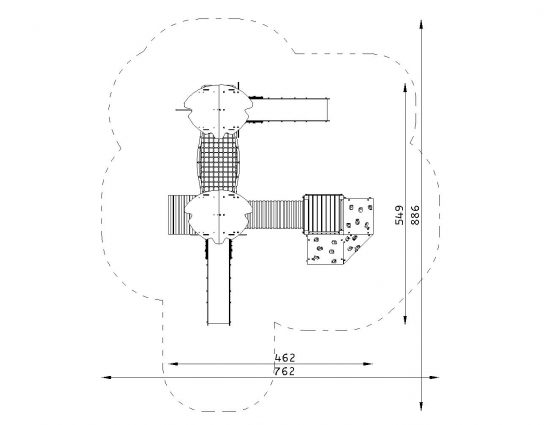

  • Minimum space required
    8,86 m x 7,62 m
  • HIC
    0.90 m
  • Impact area F
    48.72 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    2,70 x 0,75 x 0,50 m
  • Weight of heaviest item
    60 kg
