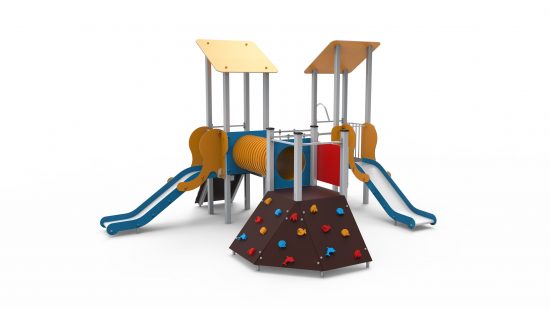

Szymek 30047CM

Set Szymek is a multifunctional device, composed of an angular climbing wall, two slides, tube passage and rope passage, fire pipe, a small balcony and entrance accommodation ladder. The device construction is made of galvanished steel painted in blue. Refills are the plastic HDPE of high quality and the slides made of stainless steel. . For people looking for an economic solution, there is a possibility of changing HDPE with waterproof plywood.

Components
  • Balcony: 1
  • Corner climbing wall 90cm: 1
  • Entry gangplank 90cm: 1
  • Fireman’s pole 90cm: 1
  • Rope bridge: 1
  • Slide 90cm: 2
  • Tower with roof, platform 90cm: 2
  • Tower without roof, platform 90cm: 1
  • Tunnel: 1

Attributes

  • Width
    4,62 m
  • Length
    5,48 m

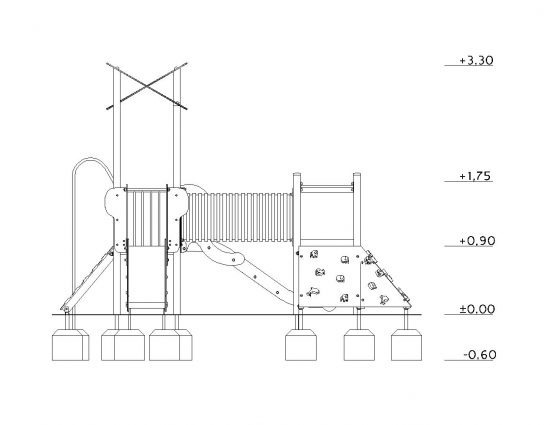

  • Height
    3,30 m

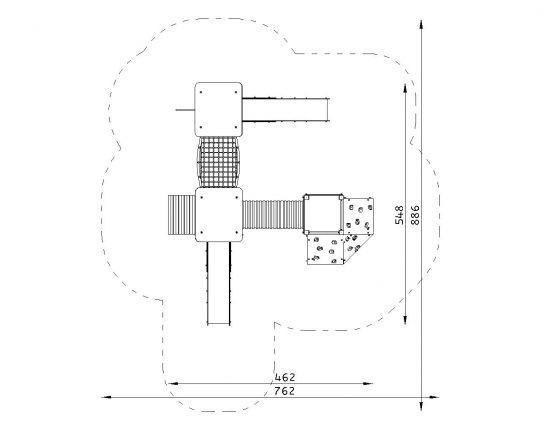

  • Minimum space required
    8,86 m x 7,62 m
  • HIC
    0.91 m
  • Impact area F
    48.75 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    2,70 x 0,75 x 0,50 m
  • Weight of heaviest item
    60 kg
