Scamp slide tower (polymer slide)

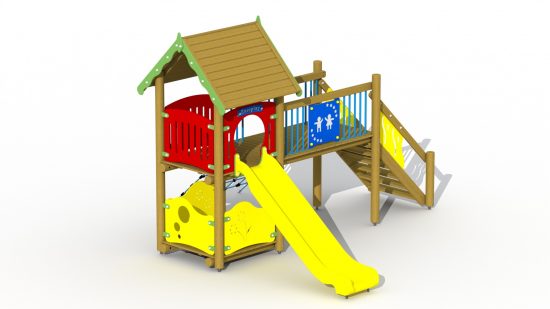

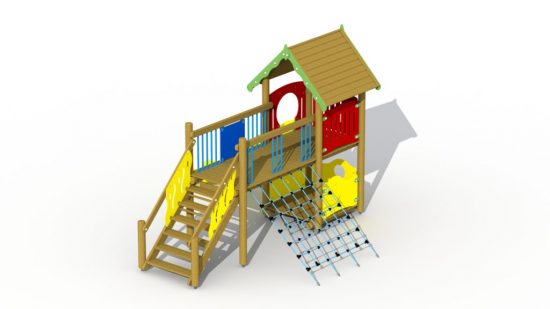

Playground equipment with an elongated platform which is partially covered by a gable roof for children aged 3 to 12. The platform can be reached via an obliquely-placed climbing net in steel wire or via an easy staircase. On top stands a plastic slide and at the base is an integrated playhouse that can be provided with two supplementary sitting benches and one table. Following add-on components are also possible: bar with abacus (S003), climbing arch (S006), rock wall (S007), low fireman’s pole (S008), sand corner (S009), net climber (S013), low spiral fireman’s pole (S014). The roundwooden larch poles are fixed into or onto the ground using metal base supports. All metal parts are treated against rust and polyester coated and all nuts and bolts are completely covered with flowershaped protection caps.

Materials

  • Type of wood: larch
  • 12 cm thick round wooden poles cut outside the heart
  • Roof boards with edge 22 mm thickness
  • Floor boards with edge 22 mm thickness
  • HDPE polyethylene sheet material 19 mm thick
  • Staircase with integrated rungs of 35 mm thickness
  • Plastic slide
  • Galvanized metal base supports
  • Plastic clamps
  • Nets in 16 mm polypropylene rope with steel-wire reinforcement
  • Metal parts treated against rust and polyester coated

Attributes

  • Dimensions
    4,7 x 4,4 x 3,2 m
  • Fall height
    1,35 m
  • Age
    3-12
  • Assembly
    2p. - 8h.
  • Safety zone
    50 m²
  • Certification
    EN-1176
  • Concrete required
    Yes
