Quadro 1254
Quadro 1254

Quadro 1254

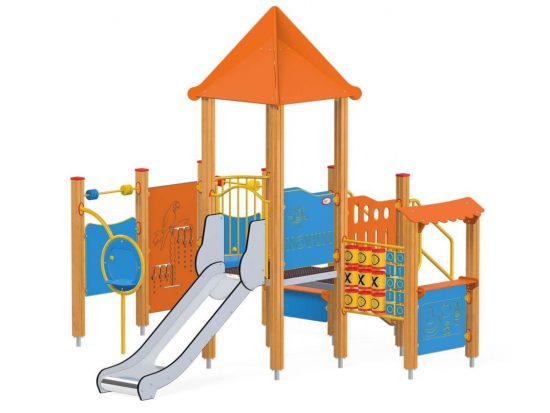

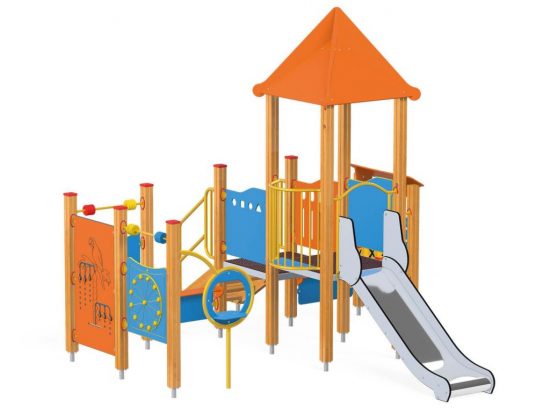

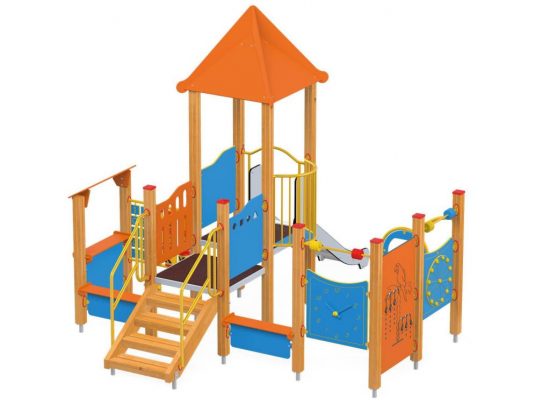

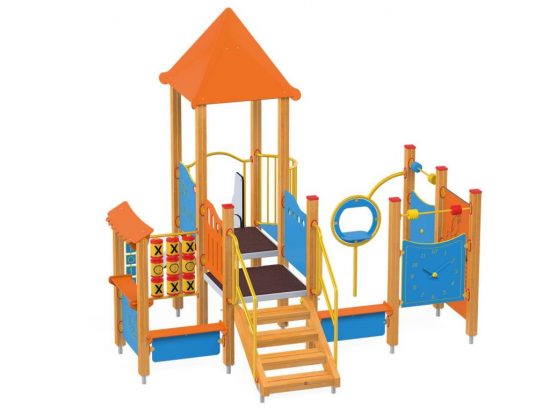

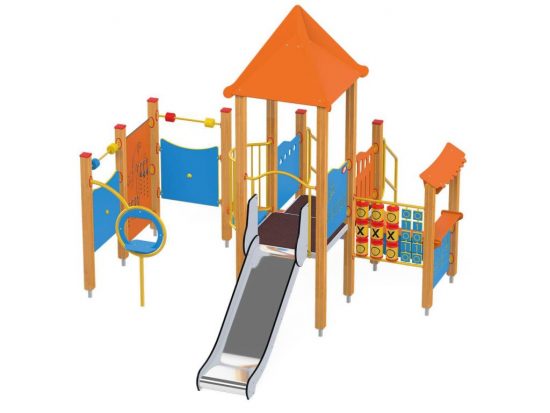

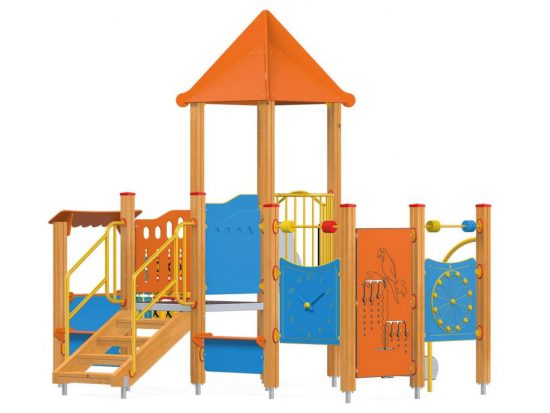

2 square platforms, stainless steel slide, stairs, balcony, 3 security panels, hipped roof

No

Anchoring

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.

Attributes

Rubber tiles

This equepment can be supplied with a rubber tile safty earea.

Artificial grass

For more information about artificial grass click below to read more

Materials

Bearing posts are square and have a cross section of 9×9 cm. They are made of glue-laminated wood, fixed 10 cm above the ground level with metal anchors.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Wood elements are oiled or covered with a colour glaze.
Steel elements are protected against corrosion with zinc layer and powder paint coating.

Attributes

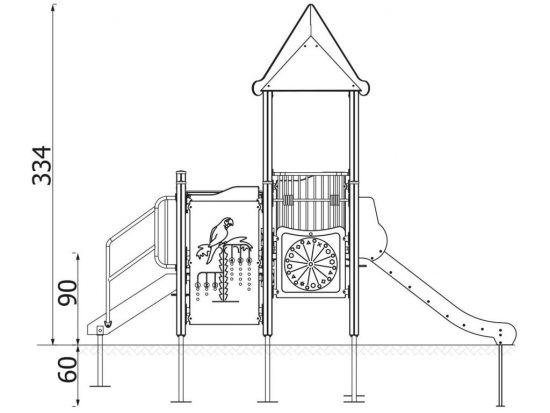

  • Unit measurements (L x B x H)
    425 x 360 x 332 cm

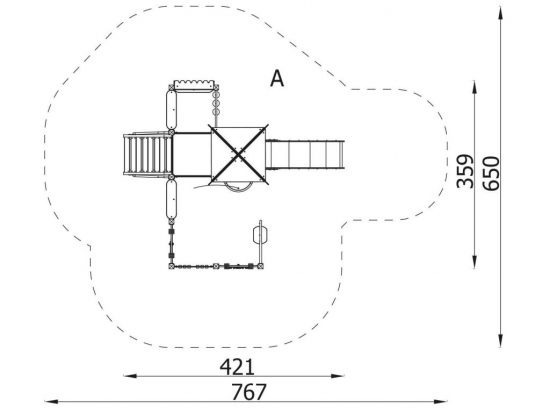

  • Required surface area
    660 x 770 cm
  • Free height of fall
    105 cm
  • Largest part
    70 x 300 cm
