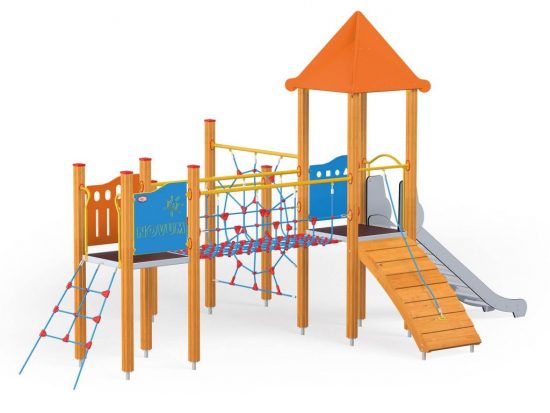

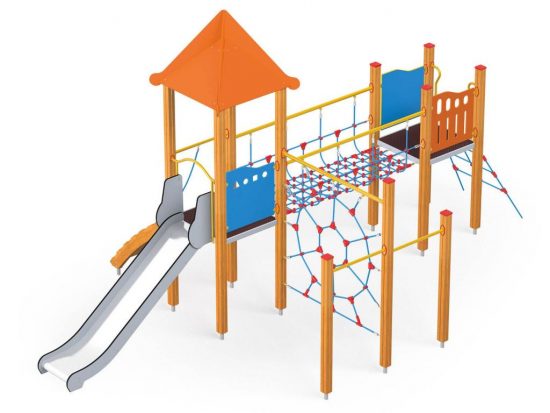

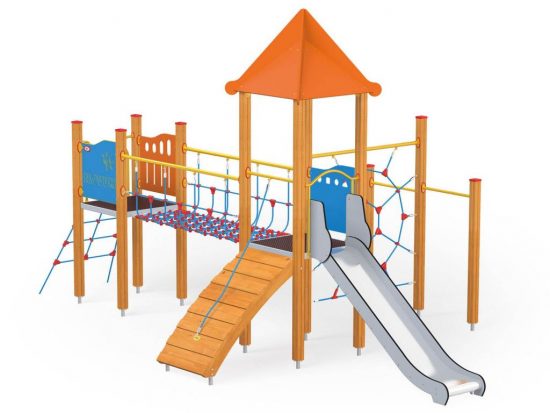

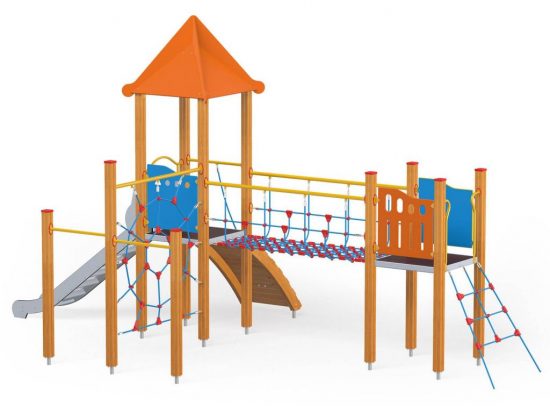

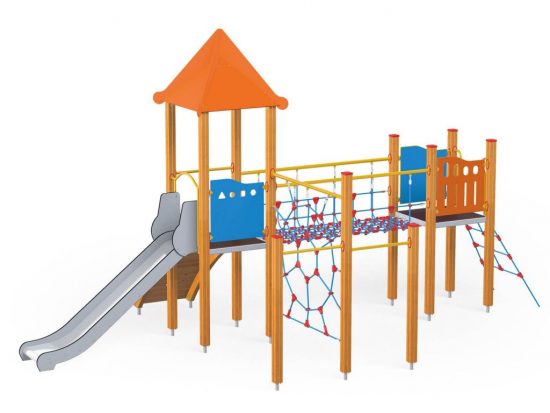

Quadro 1243
2 square platforms, deep stainless steel slide, rope bridge, hipped roof, 2 gymnastic bars, rope entrance, spider rope interlace, climbing trap, 3 security panels
no
Anchoring

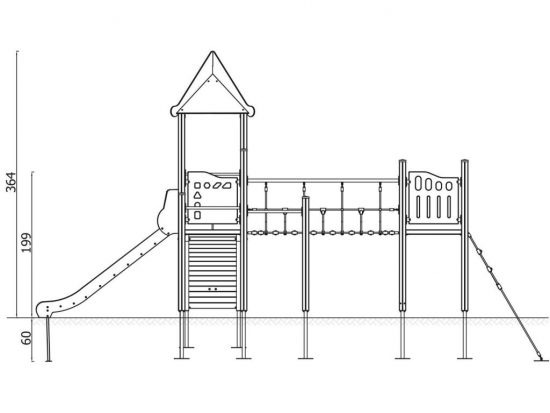

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.
Attributes
Rubber tiles
This equepment can be supplied with a rubber tile safty earea.
Artificial grass
For more information about artificial grass click below to read more
Materials
Bearing posts are square and have a cross section of 9×9 cm. They are made of glue-laminated wood, fixed 10 cm above the ground level with metal anchors.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Wood elements are oiled or covered with a colour glaze.
Steel elements are protected against corrosion with zinc layer and powder paint coating.
