Quadro 1238
Quadro 1238

Quadro 1238

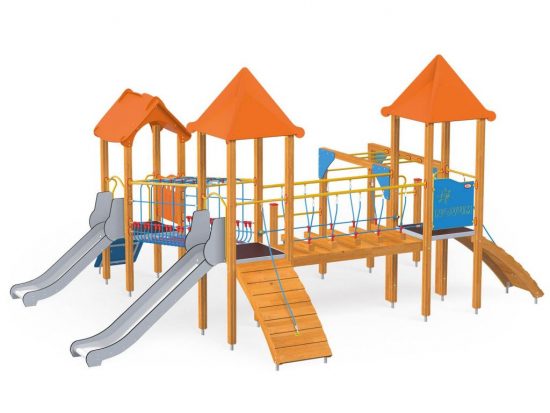

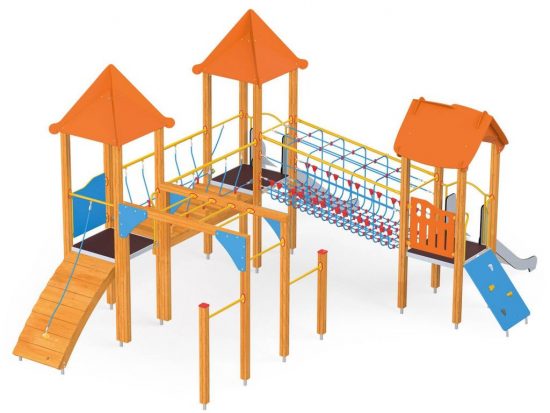

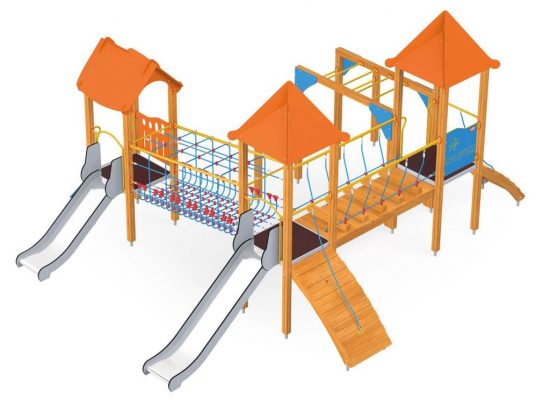

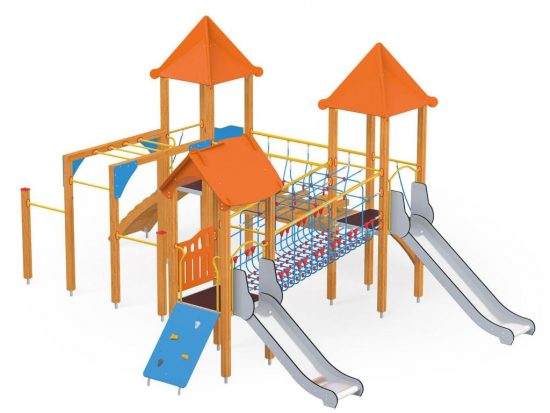

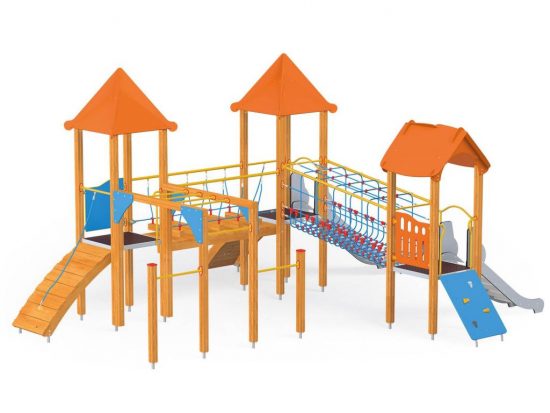

3 square platforms, stainless steel slide, deep stainless steel slide, mobile rope bridge, rope tunnel bridge, 2 steps with double mouting, 2 climbing traps, climbing entrance, 2 security panels, 2 hipped roofs, gable roof, horizontal ladder, 2 gymnastic bars

no

Anchoring

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.

Attributes

Rubber tiles

This equepment can be supplied with a rubber tile safty earea.

Artificial grass

For more information about artificial grass click below to read more

Materials

Bearing posts are square and have a cross section of 9×9 cm. They are made of glue-laminated wood, fixed 10 cm above the ground level with metal anchors.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Wood elements are oiled or covered with a colour glaze.
Steel elements are protected against corrosion with zinc layer and powder paint coating.

Attributes

  • Unit measurements (L x B x H)
    790 x 615 x 342 cm

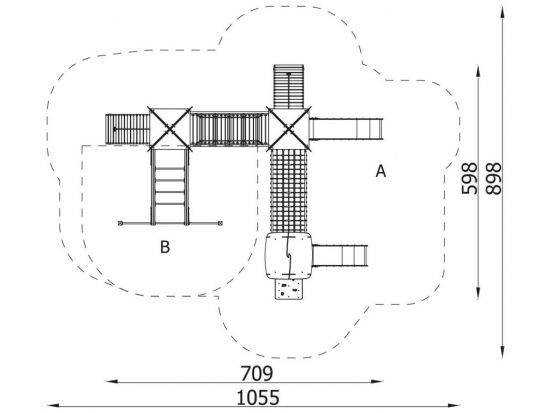

  • Required surface area
    915 x 1140 cm

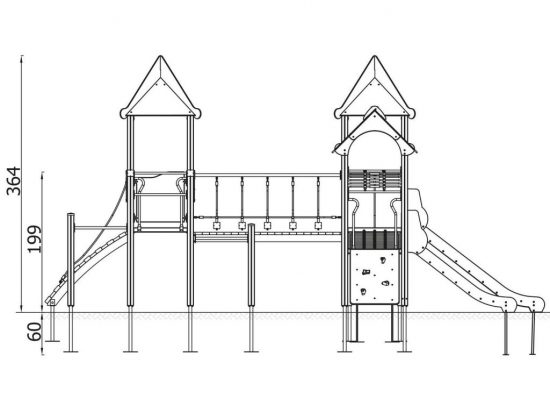

  • Free height of fall
    200 cm
  • Largest part
    350 x 80 cm
