Quadro 12343
Quadro 12343

Quadro 12343

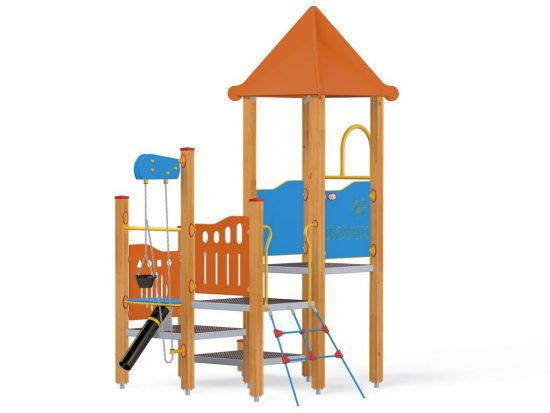

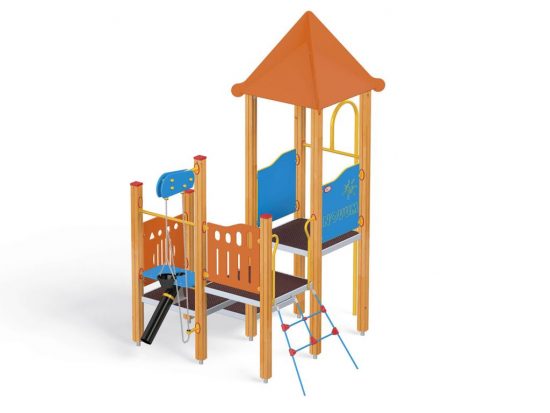

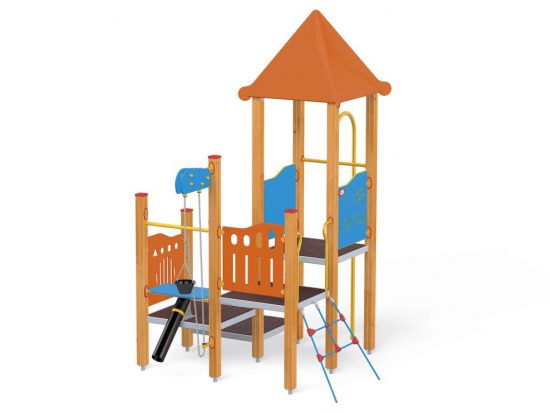

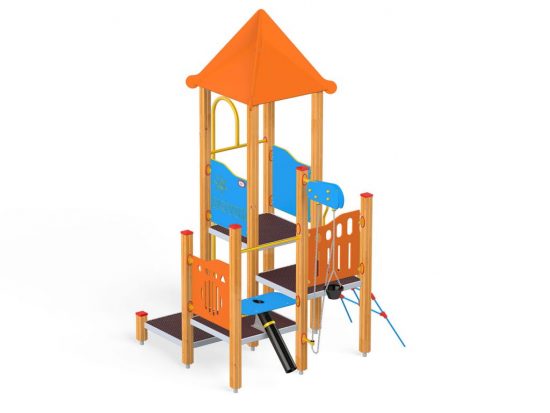

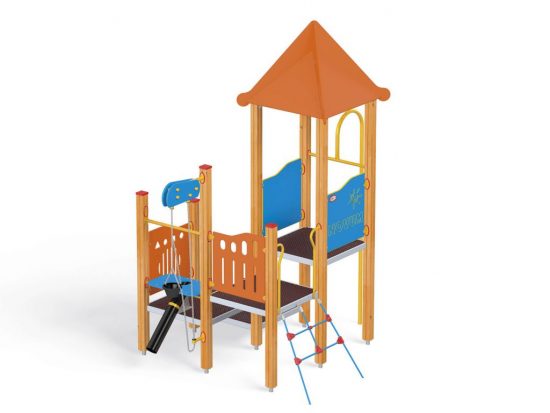

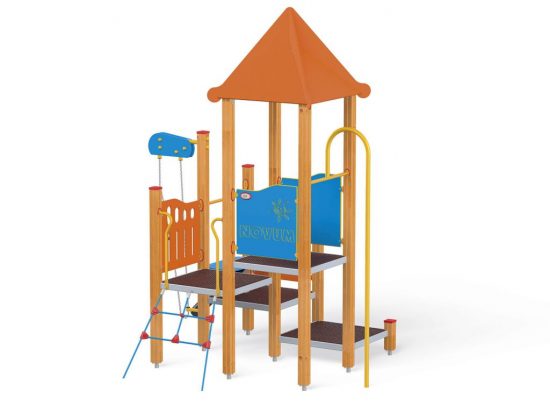

4 square platforms, fireman pole, rope entrance, 4 security panels, hipped roof, shelf with tube for pouring sand, sand winch

Anchoring

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.

Attributes

Rubber tiles

This equepment can be supplied with a rubber tile safty earea.

Artificial grass

For more information about artificial grass click below to read more

Materials

Bearing posts are square and have a cross section of 9×9 cm. They are made of glue-laminated wood, fixed 10 cm above the ground level with metal anchors.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Wood elements are oiled or covered with a colour glaze.
Steel elements are protected against corrosion with zinc primer and powder paint coating.

Attributes

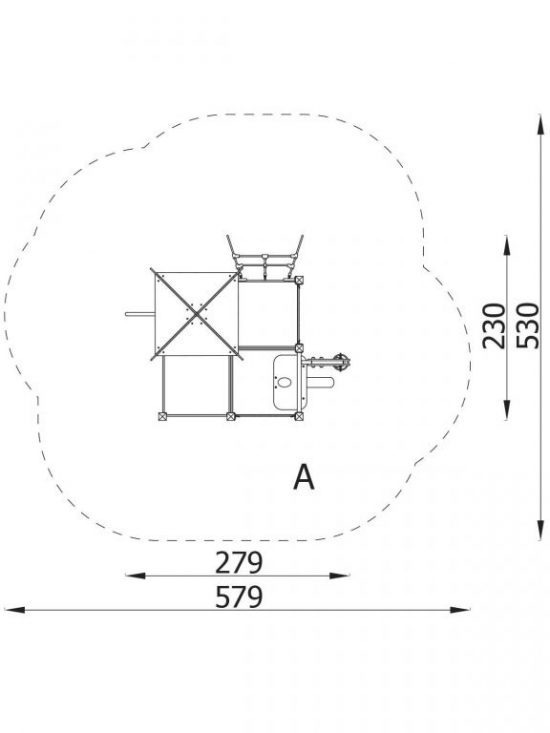

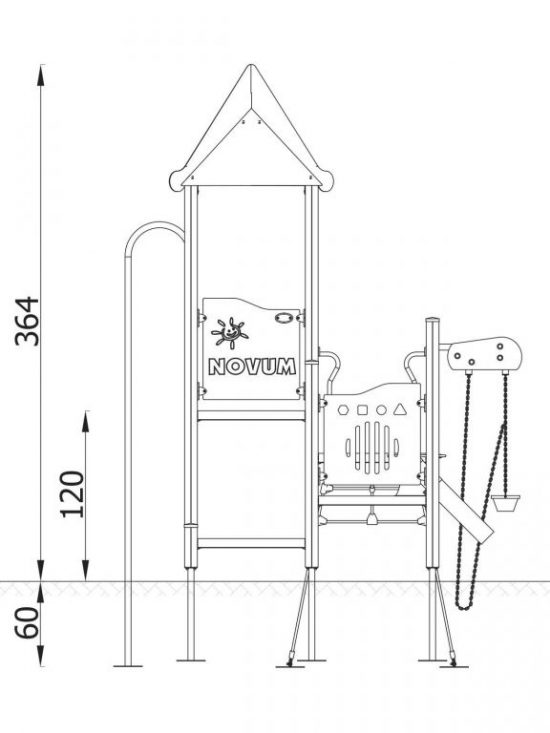

  • Unit measurements (L x B x H)
    279 x 230 x 364 cm
  • Required surface area
    530 x 579 cm
  • Free height of fall
    120 cm
  • Largest part
    x cm
