Quadro 12122

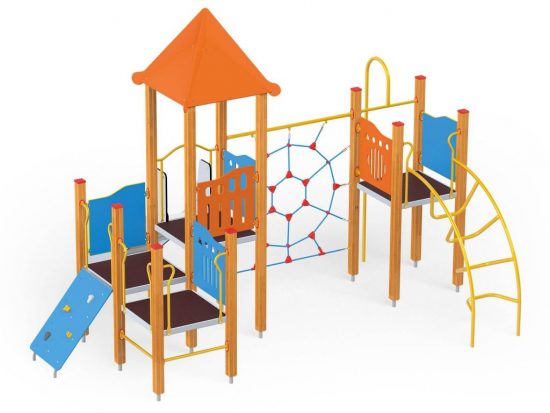

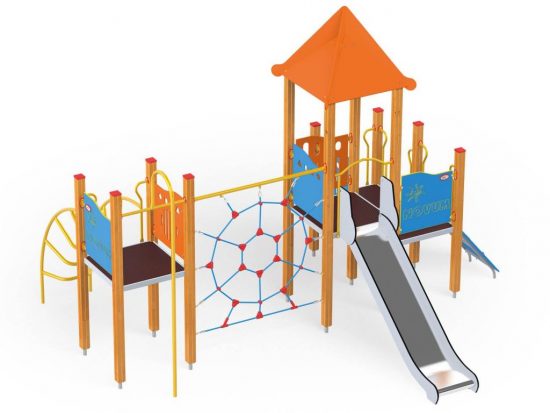

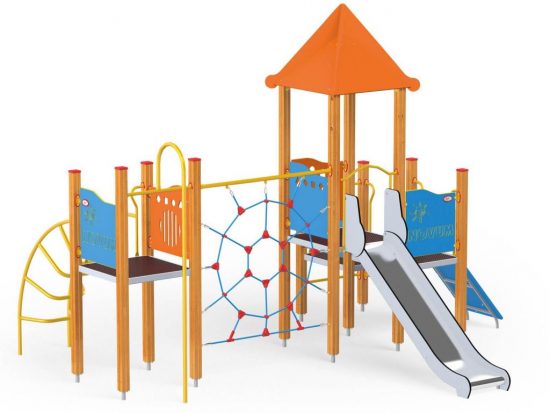

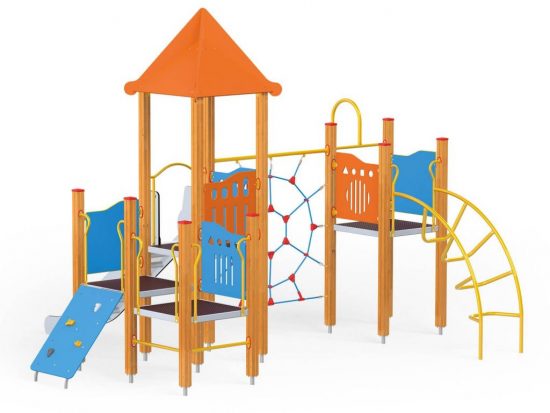

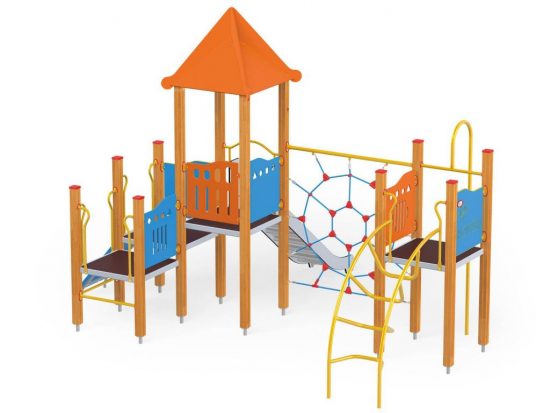

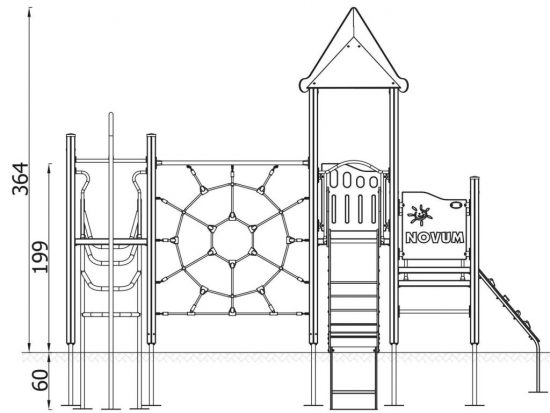

tower with envelope roof, 3 square platforms, climbing web, climbing wall, deep slide, fireman tube, arc ladder, 6 safety HDPE boards with decorative cuts, 2 entrance, metal bar over the slide.
No
Anchoring
Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.
Attributes
Rubber tiles
This equepment can be supplied with a rubber tile safty earea.
Artificial grass
For more information about artificial grass click below to read more
Materials
Bearing posts are square and have a cross section of 9×9 cm. They are made of glue-laminated wood, fixed 10 cm above the ground level with metal anchors.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Wood elements are oiled or covered with a colour glaze.
Steel elements are protected against corrosion with zinc primer and powder paint coating.
