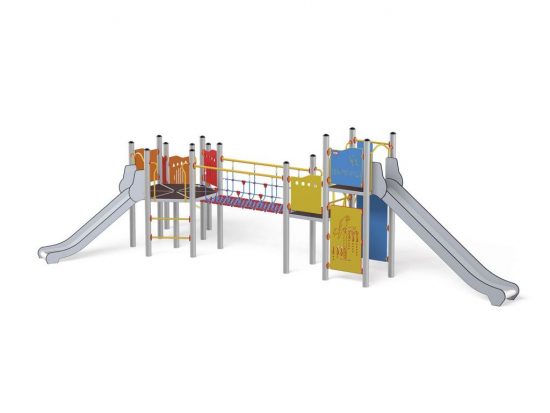

Platform 10 1125
Platform 10 1125

Platform 10 1125

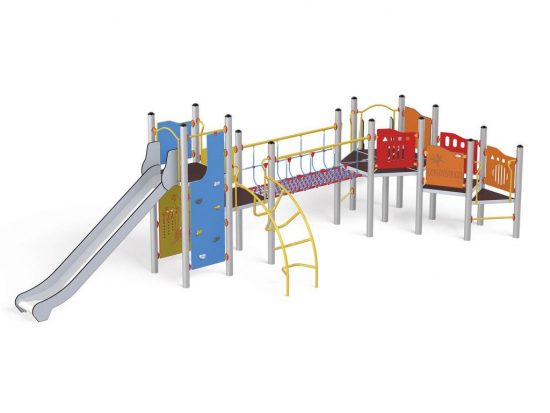

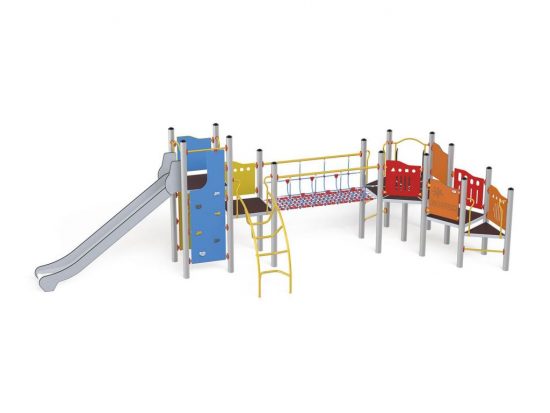

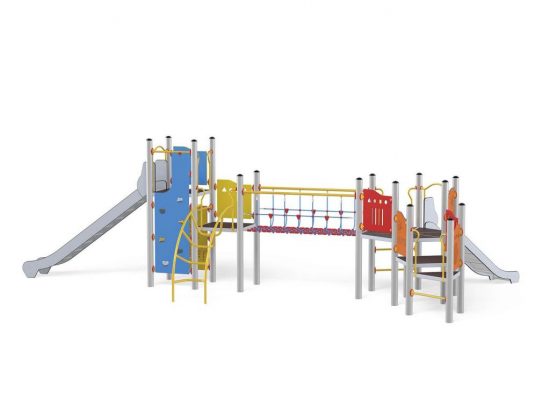

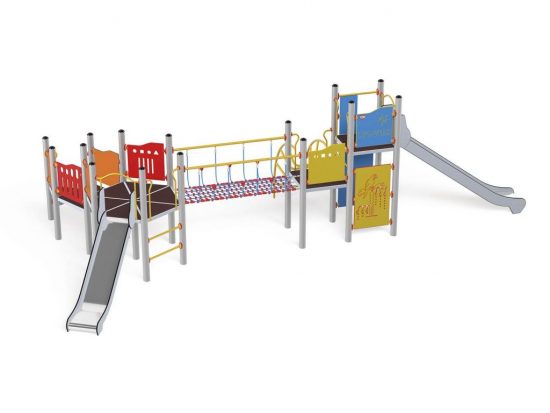

1 hexagonal platform, 3 square platforms, 1 triangular platform, 1 long slide, 1 deep slide, 1 tubular bridge, 1 arc ladder, 8 safety HDPE boards with decorative cuts,2 walls with decorative cuts, 3 entrance, 5 climbing bars, 2 metal bars over the slide, 16 metal fittings to be installed in the ground

Anchoring

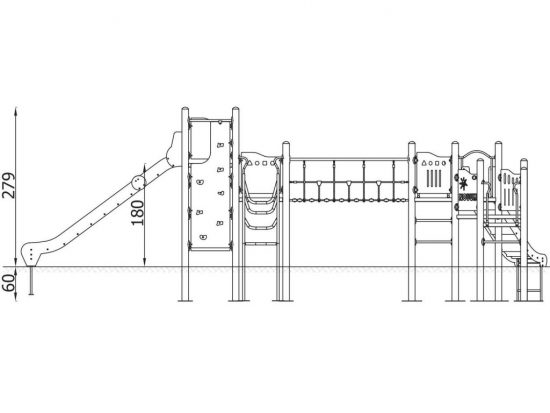

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.

Attributes

Rubber tiles

This equepment can be supplied with a rubber tile safty earea.

Artificial grass

For more information about artificial grass click below to read more

Materials

Bearing posts are made of round, steel pipes with a diameter of 114 cm, fixed direct in the ground.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Steel elements are protected against corrosion by zinc layer and powder paint coating.

Attributes

  • Unit measurements (L x B x H)
    466 x 919 x 279 cm

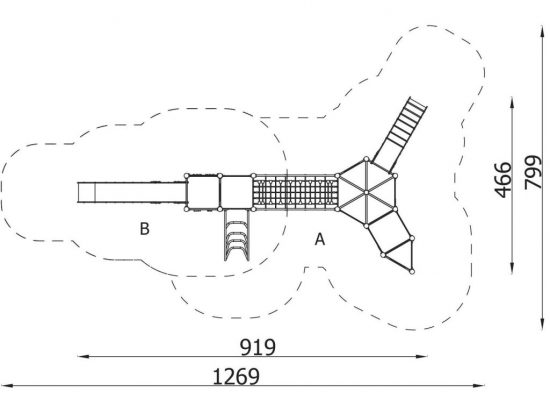

  • Required surface area
    1269 x 799 cm
  • Free height of fall
    1.8 cm
  • Largest part
    x cm
