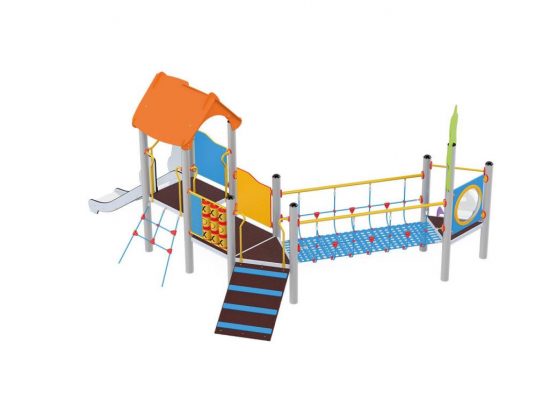

Orbis set 11373
Orbis set 11373

Orbis set 11373

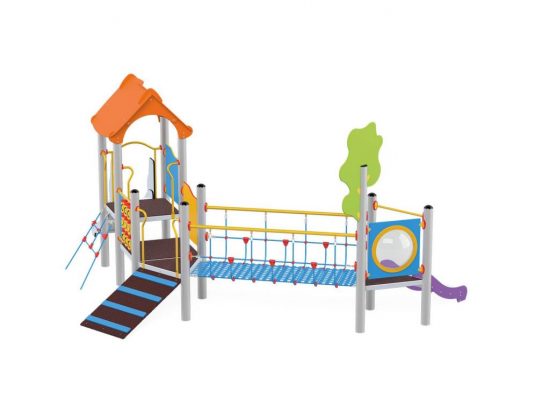

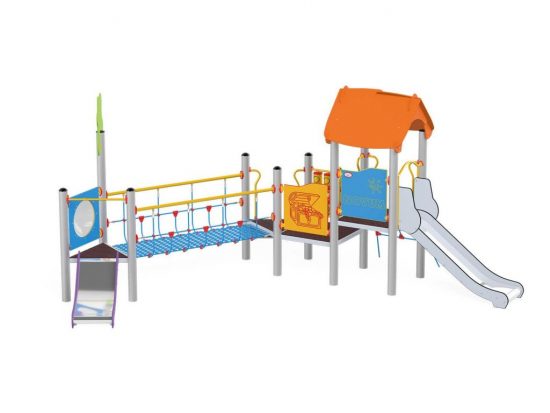

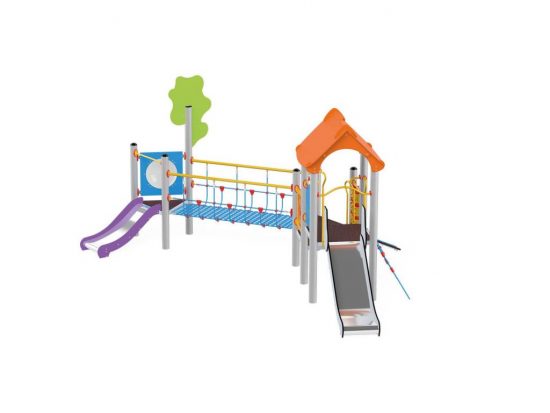

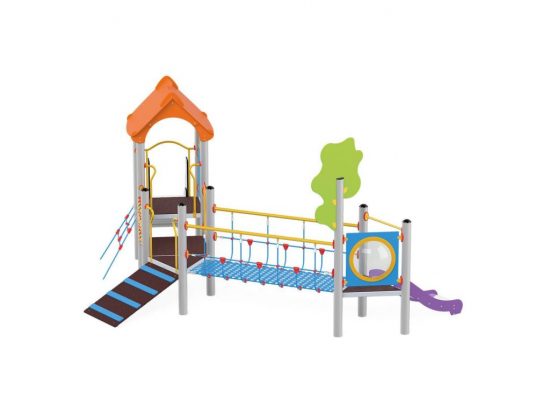

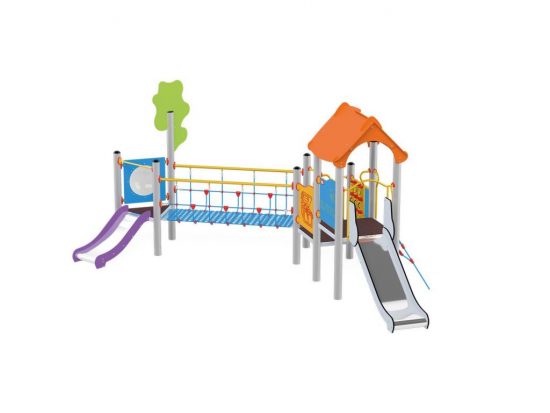

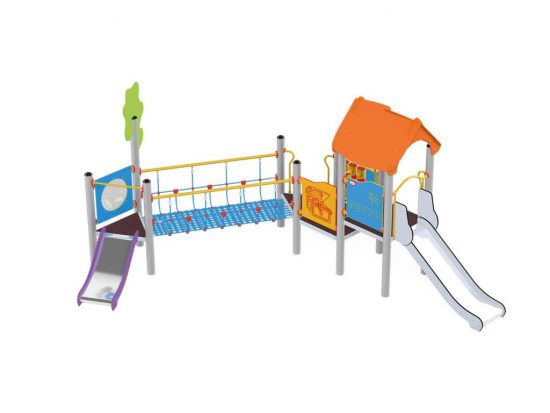

An interesting and original set designed for the youngest users of playgrounds. 2 slides placed at different heights and rope entrance are characteristic elements of this set. The climbing trail is located in the center and leads to the lower slide through the bridge. A tic-tac-toe game is located on the other side of the bridge, it will help you wait for the time to descend from the upper slide.

Anchoring

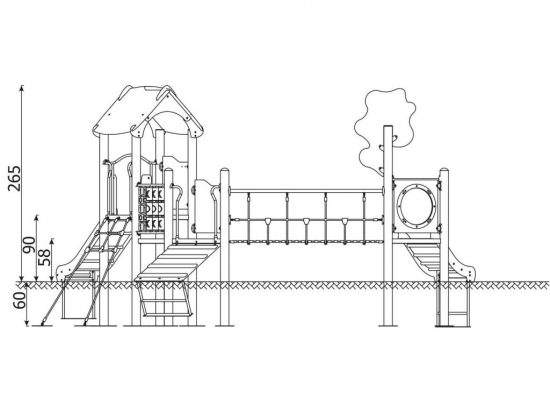

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.

Attributes

Rubber tiles

This equepment can be supplied with a rubber tile safty earea.

Artificial grass

For more information about artificial grass click below to read more

Materials

Bearing posts are made of round, steel pipes with a diameter of 114 cm, fixed direct in the ground.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Steel elements are protected against corrosion by zinc layer and powder paint coating.

Attributes

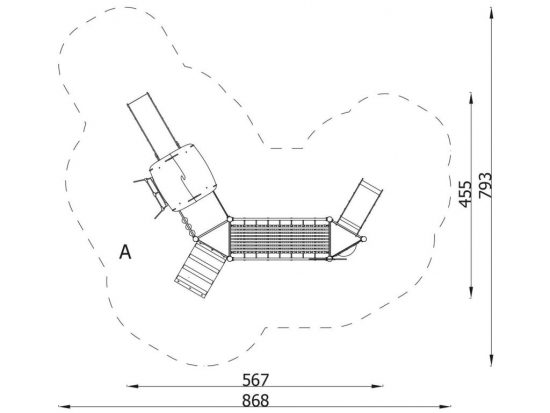

  • Unit measurements (L x B x H)
    455 x 567 x 265 cm
  • Required surface area
    868 x 793 cm
  • Free height of fall
    90 cm
  • Largest part
    x cm
