Jim intergration 10006TM

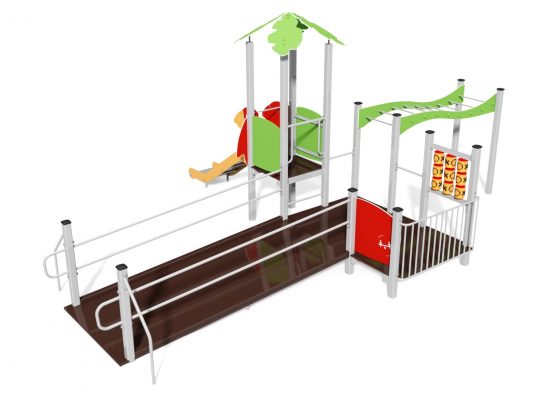

Jim integration set is a project which gives to the disabled children a possibility of active participation in playing with peers. The set requires a subgrade which makes possible the easy and secure moving on the playground, like a synthetic subgrade. The Jim set from the tropical collection is an unique union of interesting colours with high quality of used materials The set construction is made a galvanized steel painted in grey. Refills are the plastic HDPE of high quality.

Components
  • ‘Tic Tac Toe’ Interactive game: 1
  • Big platform 30 cm: 1
  • Driveway gangplank 30cm: 1
  • Horizontal ladder 244cm: 1
  • Slide 90cm: 1
  • Tower with roof, platform 90cm: 1
  • Vertical ladder: 1
  • Wide balcony: 1

Attributes

  • Width
    5,25 m
  • Length
    7,40 m

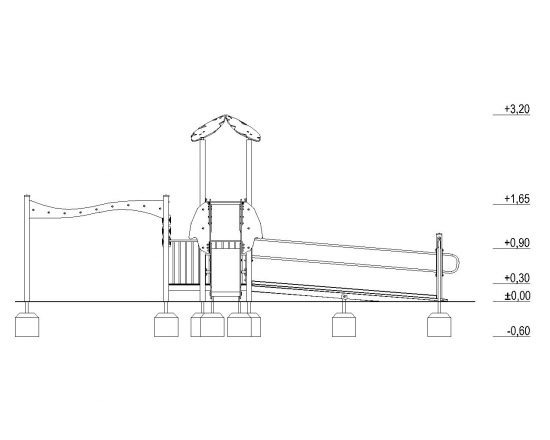

  • Height
    3,20 m

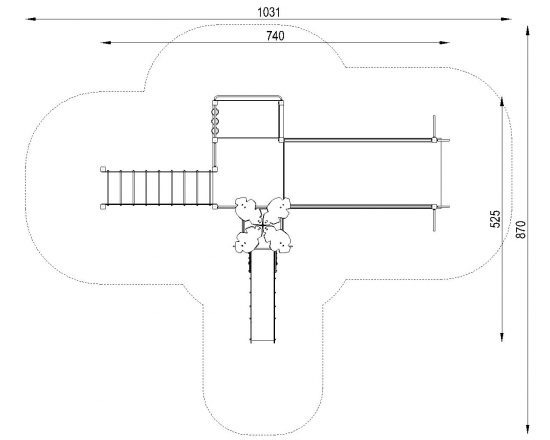

  • Minimum space required
    10,31 m x 8,70 m
  • HIC
    1.65 m
  • Impact area F
    54.56 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    3,60 x 1,50 x 0,20 m
  • Weight of heaviest item
    150kg
