Alice in wonderland (polymer slide)

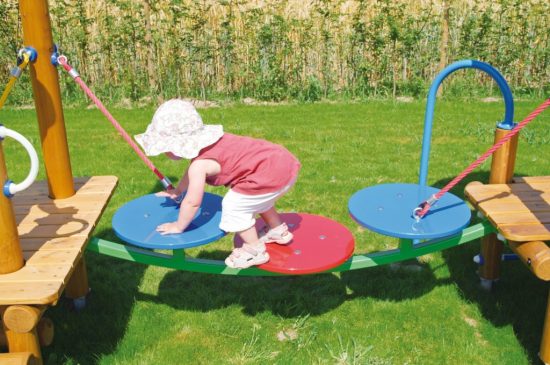

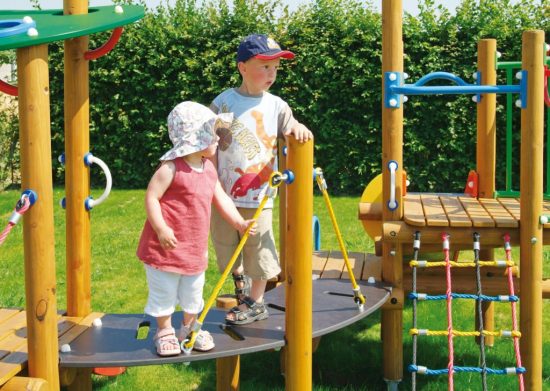

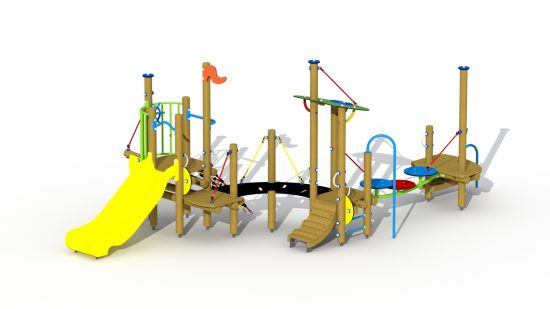

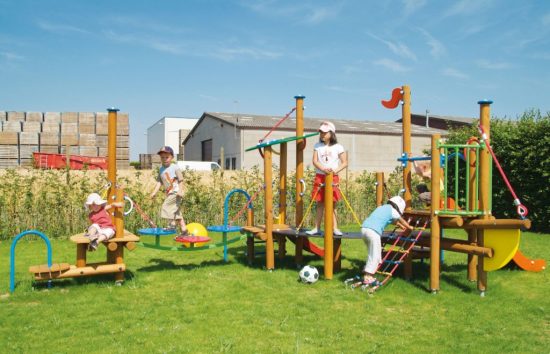

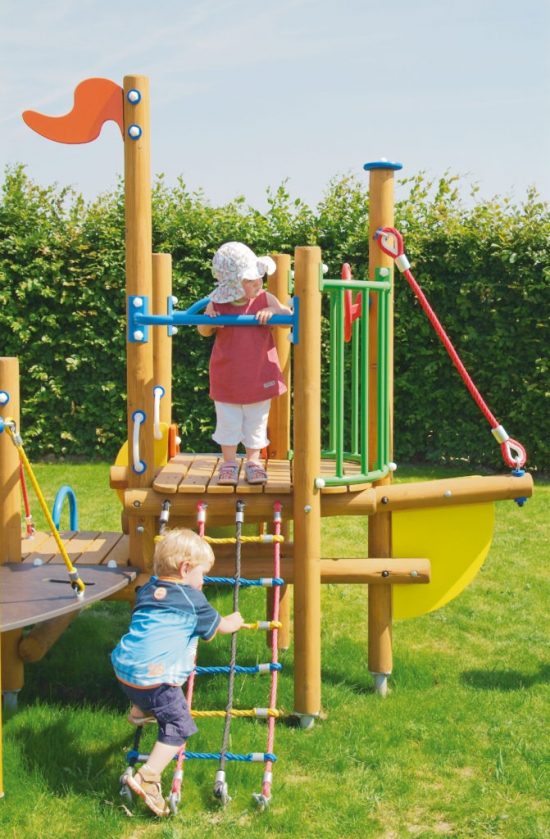

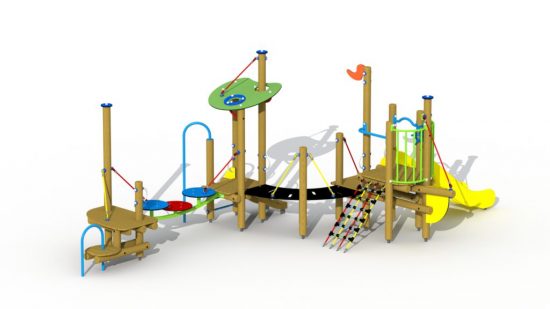

Colorful combination playground equipment for children aged 2 to 6. The playground equipment consists out of several platforms at different levels that are linked together using playful connection elements. From the top platform, with a height of 93 cm, leaves a plastic slide. The highest platform is equipped with a balustrade with colorful metal railings, on which a steering wheel is mounted. The platform is accessible via a net climber and a two-fold platform staircase with metal tube railings. From the middle platform one can walk to a platform with a HDPE polyethylene roof via a quadrant bridge. The covered platform is equipped with a ladder with metal rungs, a climbing arch and a small fireman’s pole. Starting from this platform one can balance on a mushroom bridge with HDPE polyethylene discs to a smaller platform. This platform consists of two levels and is equipped with a small fireman’s pole that also serves as a handrail. Various parts of the playground equipment are equipped with plastic handles that facilitate climbing. The roundwooden larch poles have a diameter of 10 cm and are fixed into or onto the ground using metal base supports.

Materials

  • Type of wood: larch
  • 10 cm thick round wooden poles cut outside the heart
  • All metal parts are polyester coated
  • HDPE polyethylene sheet material
  • Ropes and nets in 16 mm polypropylene rope with steel-wire reinforcement
  • Plastic slide
  • Handles and steering wheel in plastic
  • Flower-shaped protection caps
  • Galvanized metal base supports

Attributes

  • Dimensions
    6,1 x 3,5 x 2,4 m
  • Fall height
    0,85 m
  • Age
    2 - 6
  • Assembly
    2p. - 12h.
  • Safety zone
    46 m²
  • Certification
    EN-1176
  • Concrete required
    No
