Ali baba and the forty thieves (stainless steel slide)

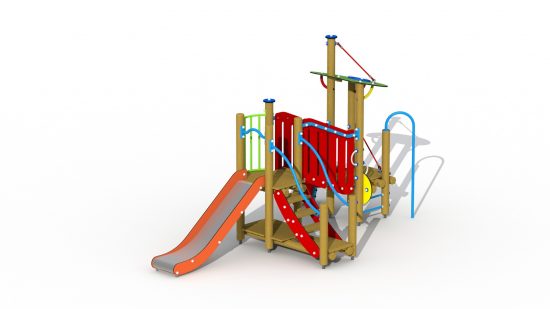

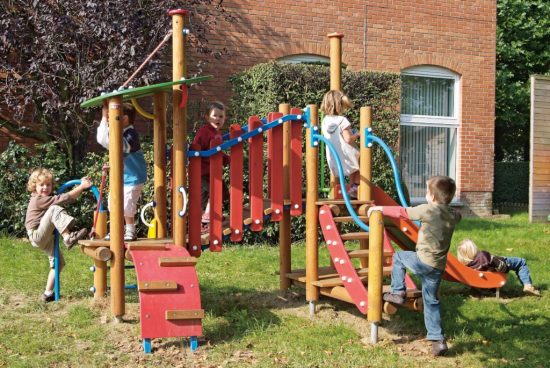

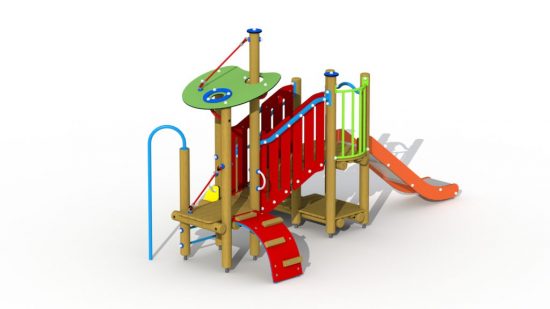

Colorful playground equipment for children aged 2 to 6. The playground equipment consists of a playhouse with several platforms on different levels that are linked together using an arched bridge. The first part consists of 2 platforms one above the other. The upper platform is at 93 cm height and can be left via a a slide with stainless-steel slide plate and HDPE polyethylene edges. The platform can be reached via an easy staircase with metal railings. The platform is equipped with a curved metal balustrade. Below a play floor was arranged. From the upper platform one can go to the lower platform by using the arched bridge with wooden railings. This lower platform has a height of 52 cm and is covered with a roof from rounded colorful HDPE polyethylene panels. It can be reached via a two-fold platform staircase with metal tube railings, a climbing arch, a mini-gliss and a HDPE polyethylene climbing arch with wooden climbing holds. Various parts of the playground equipment are equipped with plastic handles that facilitate climbing. The roundwooden larch poles have a diameter of 10 cm and are fixed into or onto the ground using metal base supports.

Materials

  • Type of wood: larch
  • 10 cm thick round wooden poles cut outside the heart
  • All metal parts are polyester coated
  • HDPE polyethylene sheet material
  • Ropes in 16 mm polypropylene rope with steel-wire reinforcement
  • Stainless-steel slide with HDPE polyethylene sidewalls
  • Handles in plastic
  • Flower-shaped protection caps
  • Galvanized metal base supports

Attributes

  • Dimensions
    3,9 x 2,2 x 2,3 m
  • Fall height
    0,85 m
  • Age
    2 - 6
  • Assembly
    2p. - 8h.
  • Safety zone
    32 m²
  • Certification
    EN-1176
  • Concrete required
    No
