Voyager spiral (RAL 1001)

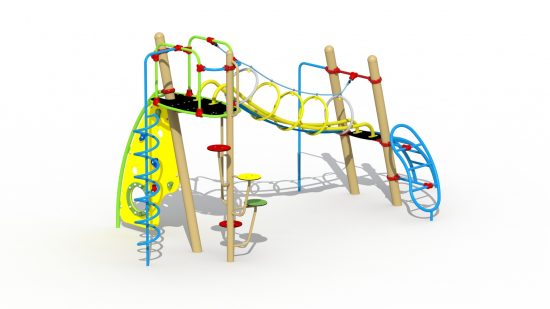

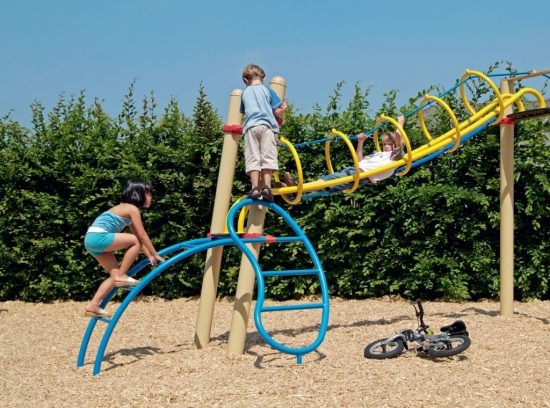

Challenging modern playground equipment for children aged 6 to 15. It is built out of 2 vertical poles with diameter 89 and 127 mm. It can be climbed via a spiral staircase with round HDPE polyethylene stairs or via a bended climbing wall made out of HDPE polyethylene panel with several climbing and crawling possibilities. The climbing wall has plastic climbing grips and is fixed to the pole with aluminium clamps. On top there is a lookout. The railing of this lookout is made out of 34 mm tubes which are connected with each other by means of clamps. One can leave the lookout via a spiral fireman’s pole or via a connection tunnel with HDPE polyethylene sliding surface. The connection tunnel is connected to a lower platform fixed between 2 poles. A bean-shaped climbing ladder, a bended ladder and a fireman’s pole are connected to these 2 poles. All metal parts are treated against rust and all nuts and bolts are covered by flower-shaped protection caps. This playground equipment is fixed directly into the ground by using concrete.

Materials

  • Metal poles of 89 and 127 mm
  • Metal tubes 34, 43 and 48 mm
  • Metal parts polyester coated
  • Aluminium and plastic clamps
  • Plastic pole and protection caps
  • Sheet material and climbing grips in HDPE polyethylene
  • Ropes in 16 mm polypropylene rope with steel-wire reinforcement

Attributes

  • Dimensions
    5,8 x 2,7 x 2,8 m
  • Fall height
    2,00 m
  • Age
    6 - 15
  • Assembly
    2p. - 11h.
  • Safety zone
    45 m²
  • Certification
    EN-1176
  • Concrete required
    Yes
