Viking boat (stern – incl. crow’s nest with pirate flag)

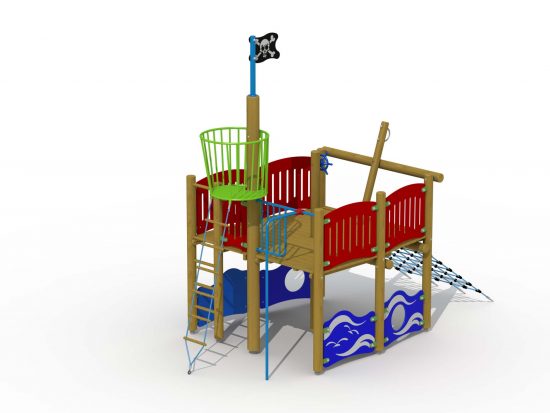

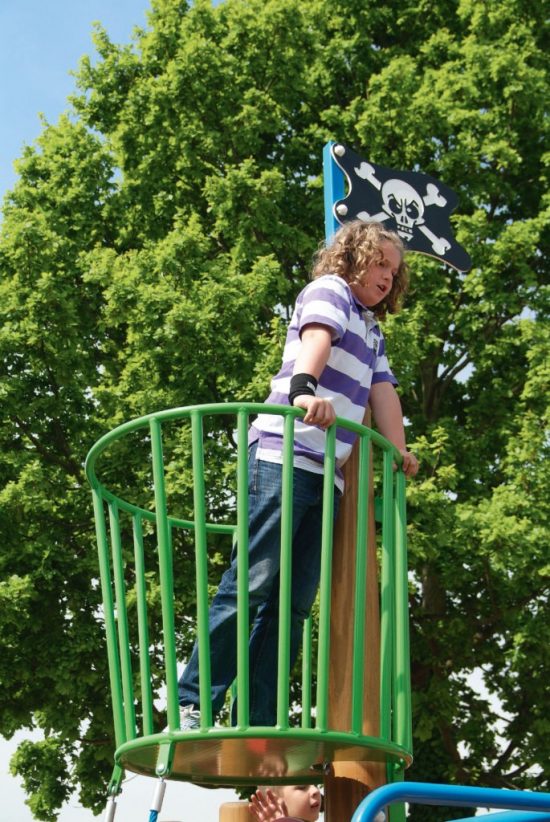

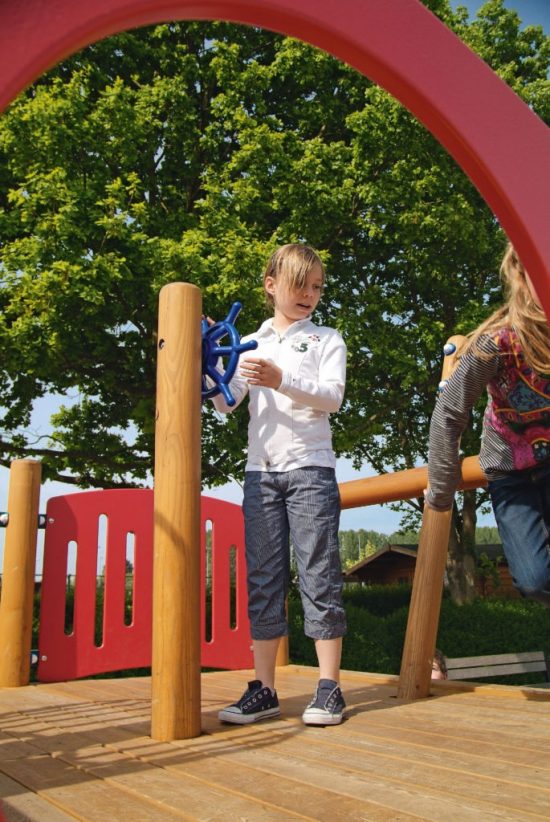

Playground equipment as viking boat which consists of 2 parts for children aged 4 to 12. The stern (ref. U200) has a steering wheel, a crow’s nest with rope ladder and pirate flag, a fireman’s pole, a climbing net, a climbing ladder and several extra options such as climbing arch, rock wall, net, monkey ladder, sand corner or slide. The net and ropes are made out of polypropylene rope with steel-wire reinforcement. The climbing ladder has integrated ladder rungs 40 mm thick. The basket is made with metal tubes, the cross connection is made from U profiles. The roundwooden larch poles have a diameter of 10 and 12 cm and are fixed on or into the ground by using metal base supports. All metal parts are treated against rust and all nuts and bolts are completely covered with flower shaped protection caps. In case of limit space, there is a possibilty to choose for only the crow’s nest with pirate flag and net (ref. U300) instead of the entire stern (ref. U200).

Materials

  • Type of wood: larch
  • Round wooden poles 10 and 12 cm thickness cut outside the heart
  • HDPE polyethylene sheet material
  • Floor boards 22 mm thick
  • Climbing ladder with integrated rungs 40 mm thick
  • The basket is made with metal tubes, the cross connection is made from U-profiles
  • Polyester-coated metal parts
  • Net, ropes and rope ladder in 16 mm polypropylene rope with steel-wire reinforcement
  • HDPE polyethylene crawl holes
  • Handles and steering wheel in plastic
  • Flower-shaped protection caps

Attributes

  • Dimensions
    4,9 x 2,5 x 4,1 m
  • Fall height
    2,10 m
  • Age
    4 - 12
  • Assembly
    2p. - 12h.
  • Safety zone
    43 m²
  • Certification
    EN-1176
  • Concrete required
    No
