Viking boat (stem)

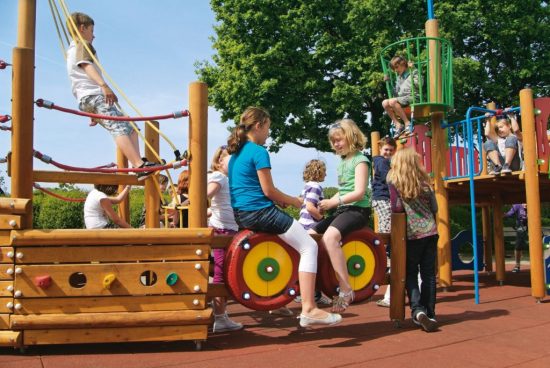

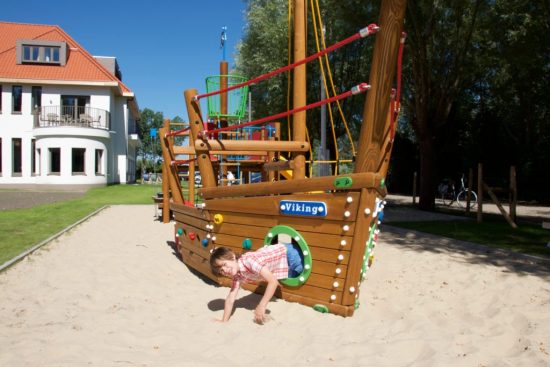

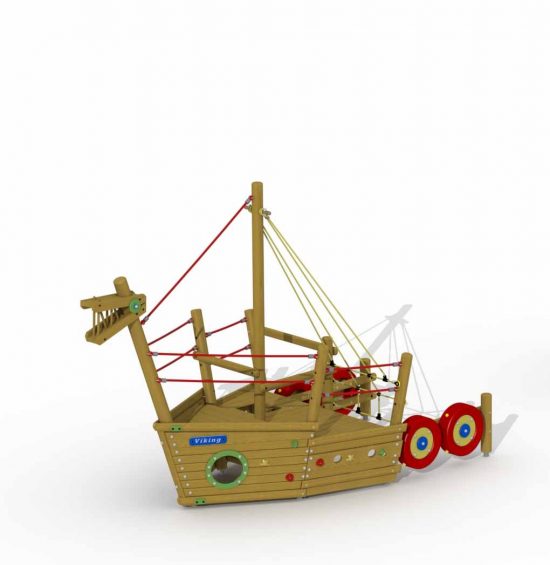

Playground equipment as viking boat which consists of 2 parts for children aged 3 to 12. The stern (ref. U100) has a dragon head, a net, four plastic tyres used as shield and several crawl holes made out of HDPE polyethylene. The net and ropes are made out of polypropylene rope with steel-wire reinforcement, the climbing grips are in plastic. The roundwooden larch poles have a diameter of 12 and 14 cm and are fixed on or into the ground by using metal base supports. All metal parts are treated against rust and all nuts and bolts are completely covered with flower-shaped protection caps.
Materials
- Type of wood: larch
- Round wooden poles 12 and 14 cm thickness cut outside the heart
- HDPE polyethylene sheet material
- Floor boards 22 mm thick
- Polyester-coated metal parts
- Net and ropes in 16 mm polypropylene rope with steel-wire reinforcement
- HDPE polyethylene crawl holes
- Climbing grips in plastic
- Plastic tyres
- Flower-shaped protection caps
