Tower 5 1132
Tower 5 1132

Tower 5 1132

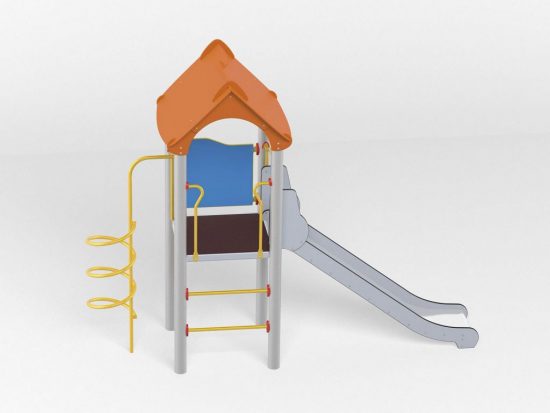

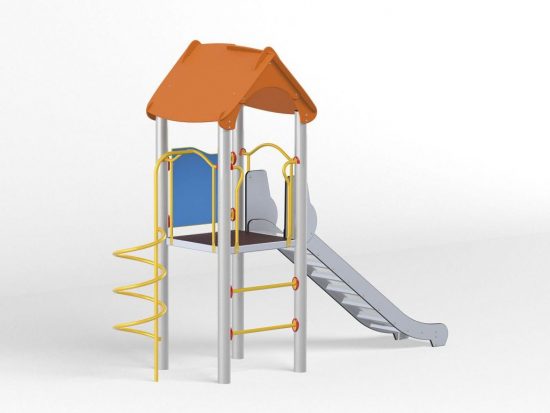

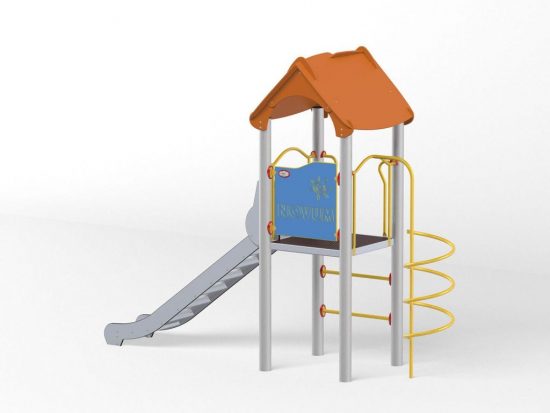

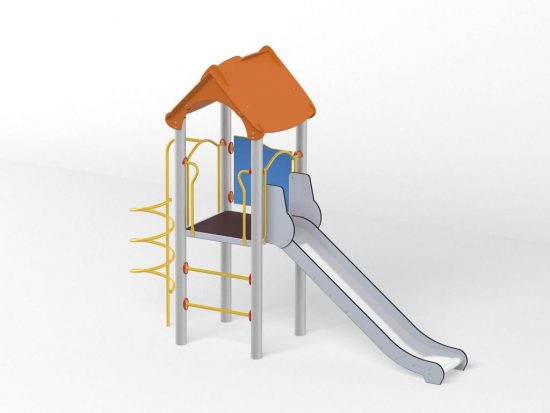

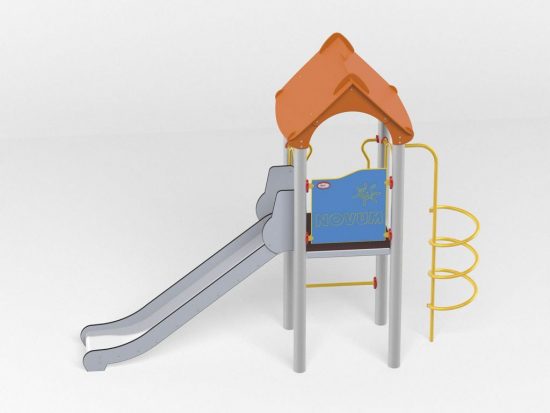

.1 tower with gable roof, 1 deep slide, 1 safety HDPE boards with decorative cuts, 1 spiral ladder, 1 square landing,1 entrance, 3 climbing bars, 1 metal bar over the slide, 4 metal fittings to be installed in the ground

Anchoring

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.

Attributes

Rubber tiles

This equepment can be supplied with a rubber tile safty earea.

Artificial grass

For more information about artificial grass click below to read more

Materials

Bearing posts are made of round, steel pipes with a diameter of 114 cm, fixed direct in the ground.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Steel elements are protected against corrosion by zinc layer and powder paint coating.

Attributes

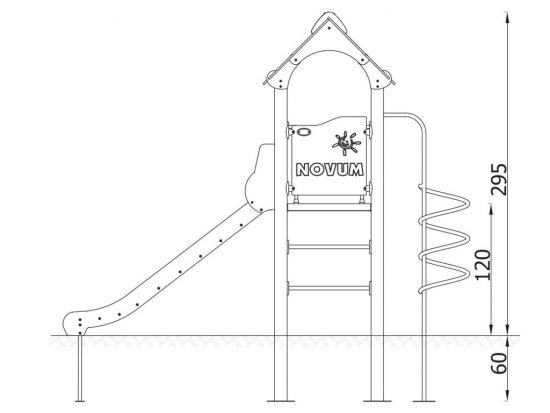

  • Unit measurements (L x B x H)
    371 x 121 x 295 cm

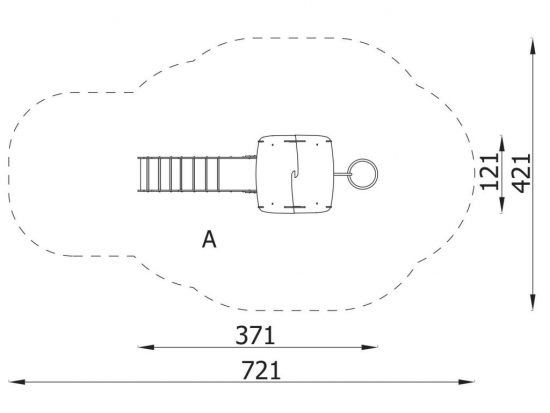

  • Required surface area
    421 x 721 cm
  • Free height of fall
    120 cm
  • Largest part
    x cm
