Tower 19 1146
Tower 19 1146

Tower 19 1146

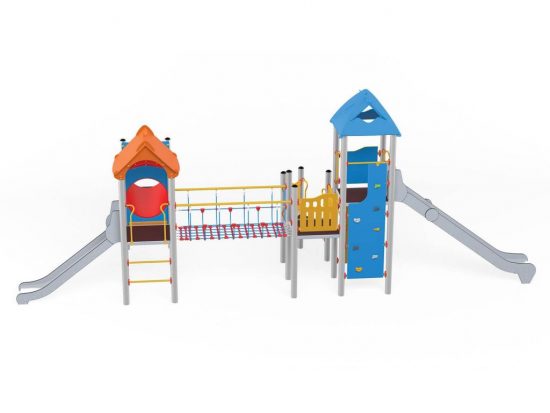

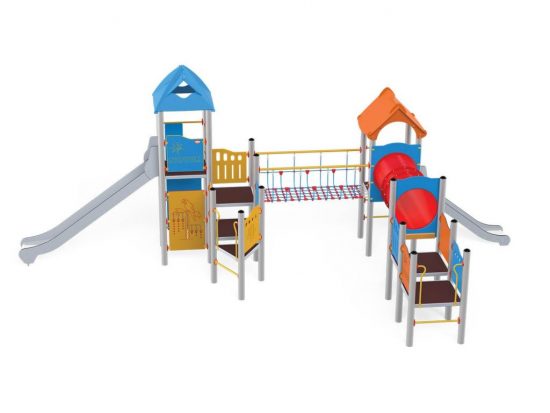

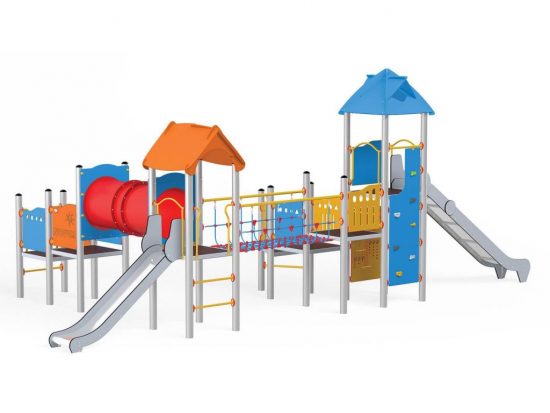

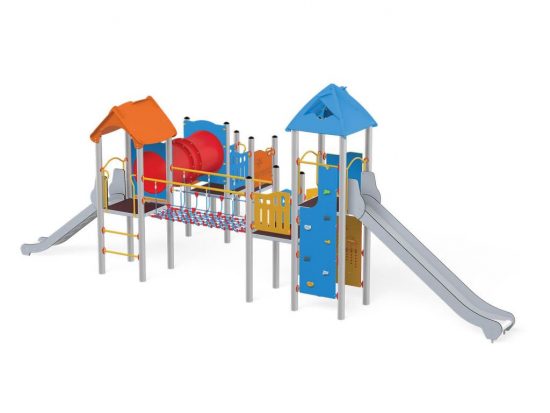

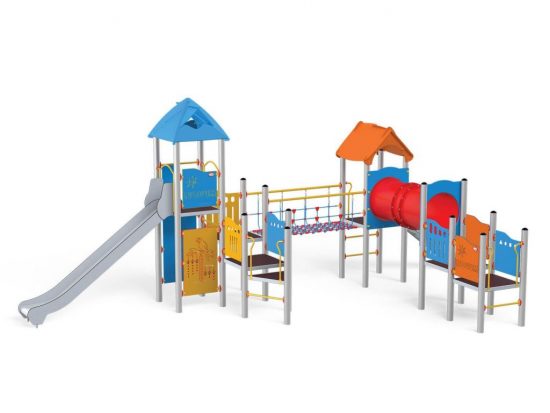

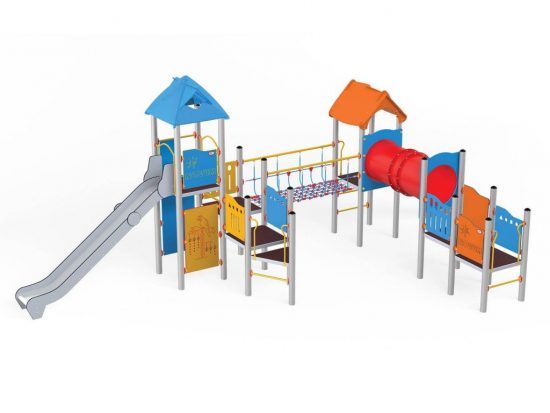

1 tower with roof, 1 tower with gable roof, 1 triangular platform, 4 square platforms, 1 tubular bridge, 1 tunnel bridge, 1 long slide, 1 deep slide, 2 walls with decorative cuts, 10 safety HDPE boards with decorative cuts, 2 square landings, 4 entrance, 6 climbing bars, 2 metal bars over the slide, 19 metal fittings to be installed in the ground

Anchoring

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.

Attributes

Rubber tiles

This equepment can be supplied with a rubber tile safty earea.

Artificial grass

For more information about artificial grass click below to read more

Materials

Bearing posts are made of round, steel pipes with a diameter of 114 cm, fixed direct in the ground.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Steel elements are protected against corrosion by zinc layer and powder paint coating.

Attributes

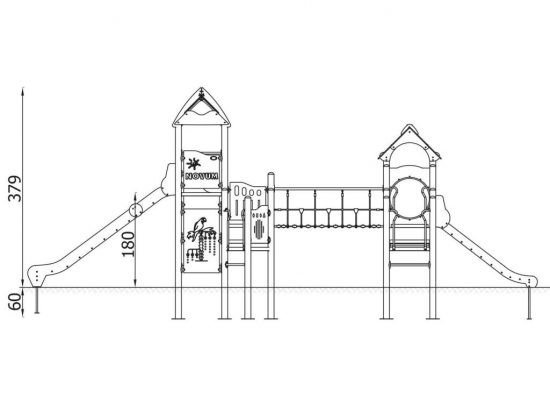

  • Unit measurements (L x B x H)
    791 x 476 x 379 cm

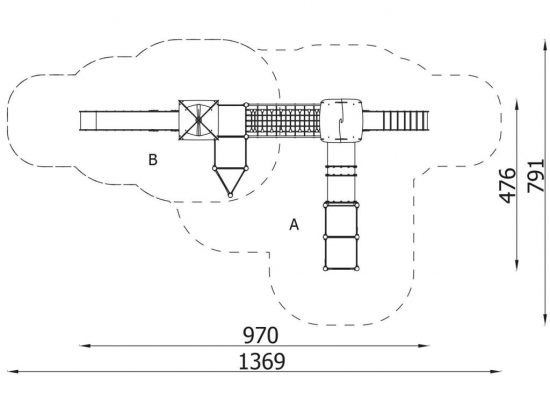

  • Required surface area
    970 x 1369 cm
  • Free height of fall
    180 cm
  • Largest part
    x cm
