Robin hood’s hideout (stainless steel slide – high and low)

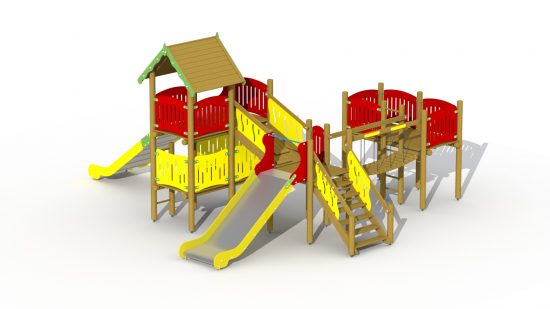

Playground equipment with one high watch tower with gable roof, consisting of two floors. The whole is connected to two lower platforms through a suspension bridge and an obliquely-placed ramp. Attached to the highest tower is a vertical climbing ladder and a high stainless steel slide; at the base a playhouse is arranged. One of the smaller platforms has a vertical climbing ladder, the other one an easy staircase and a low stainless steel slide. High fireman’s pole (S004), monkey ladder (S005), climbing arch (S006), rock wall (S007), low fireman’s pole (S008), sand corner (S009), net climber (S013), low spiral fireman’s pole (S014), high spiral fireman’s pole (S018), beam with 3 seats (S019) or play panels (S033-S038) can be ordered supplementary. The roundwooden larch poles are fixed into or onto the ground using metal base supports. All metal parts are treated against rust and polyester coated and all nuts and bolts are completely covered with flower-shaped protection caps.

Materials

  • Type of wood: larch
  • Ladder rungs in ash
  • 12 cm thick round wooden poles cut outside the heart
  • Grooved roof boards with edge 22 mm thickness
  • Floor boards 22 mm
  • HDPE polyethylene sheet material
  • Climbing ladder with integrated rungs 40 mm thick
  • Staircase with integrated boards of 35 mm thickness
  • Footbridge on steel wire; 45 x 95 mm boards
  • Low and high stainless-steel slide with HDPE polyethylene sidewalls
  • Galvanized metal base supports
  • Plastic clamps
  • Galvanized chains

Attributes

  • Dimensions
    8,0 x 7,2 x 3,9 m
  • Fall height
    2,05 m
  • Age
    6-15
  • Assembly
    2p. - 29h.
  • Safety zone
    84 m²
  • Certification
    EN-1176
  • Concrete required
    Yes
