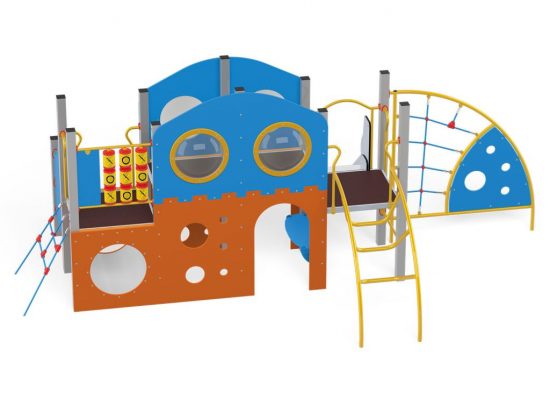

Quadro 12505
Quadro 12505

Quadro 12505

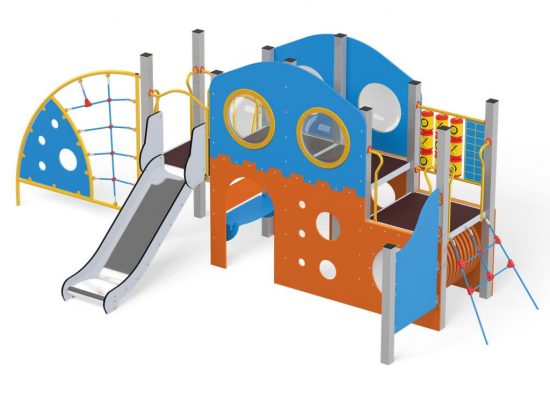

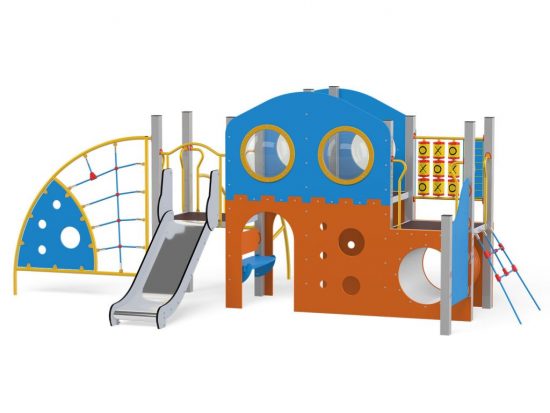

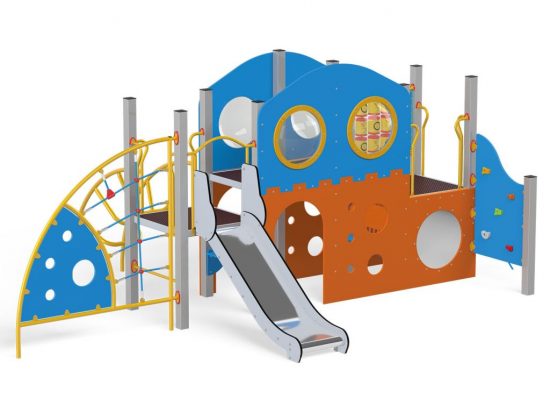

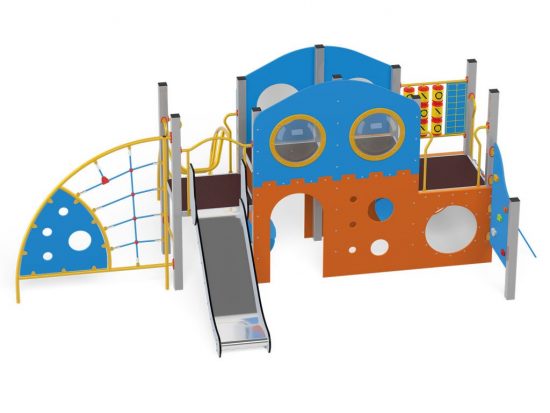

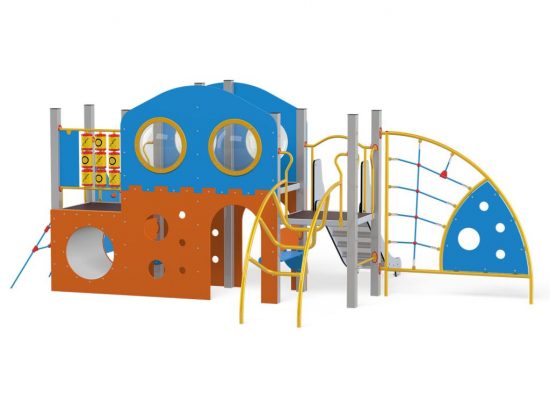

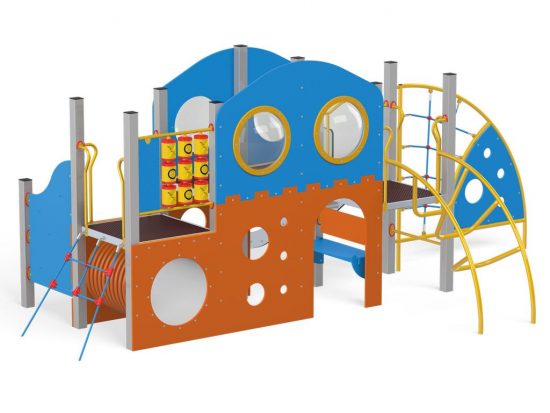

2 square platforms, stainless steel slide, climbing wall, tube tunnel, 4 rope entrances, step with double mouting, tic-tac-toe, 4 security ship panels, 2 filling between platforms located at different heights

Anchoring

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.

Attributes

Rubber tiles

This equepment can be supplied with a rubber tile safty earea.

Artificial grass

For more information about artificial grass click below to read more

Materials

Bearing posts made of square steel profiles with a cross 9x9xcm, fixed direct in the ground.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Wood elements are oiled or covered with a colour glaze.
Steel elements are protected against corrosion with zinc layer and powder paint coating.

Attributes

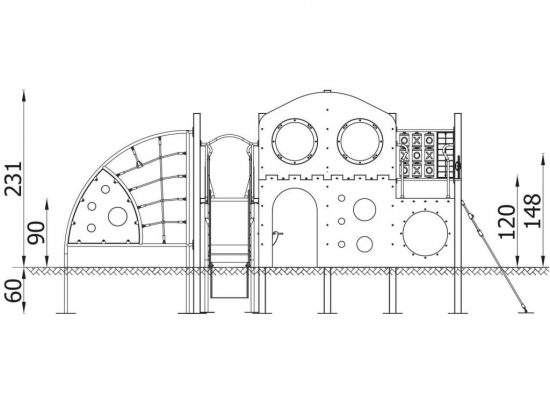

  • Unit measurements (L x B x H)
    380 x 569 x 231 cm

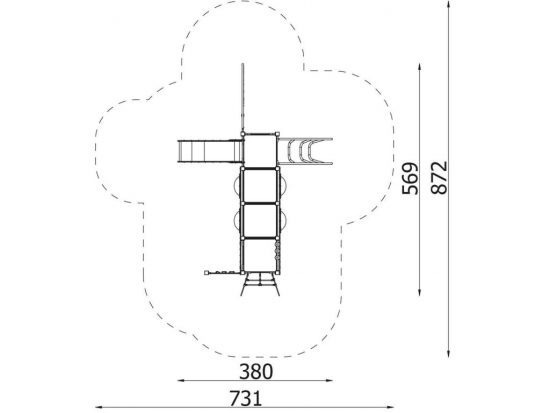

  • Required surface area
    872 x 731 cm
  • Free height of fall
    150 cm
  • Largest part
    x cm
