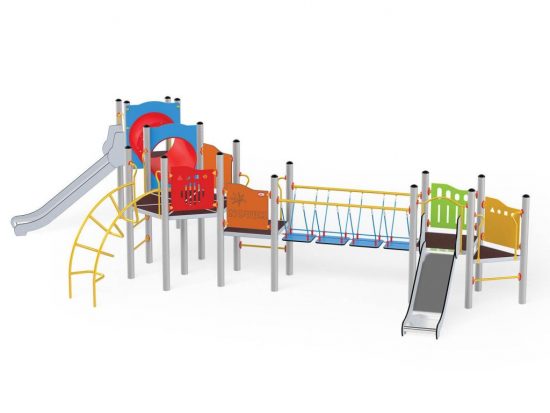

Platform 9 1124
1 hexagonal platform, 3 square platforms, 1 triangular platform, 1 slide 104, 1 deep slide, 1 tunnel bridge, 1 ladder bridge, 1 spiral ladder, 1 arc ladder,5 safety HDPE boards with decorative cuts, 4 entrance, 9 climbing bars, 1 metal bar over the slide, 18 metal fittings to be installed in the ground
Anchoring

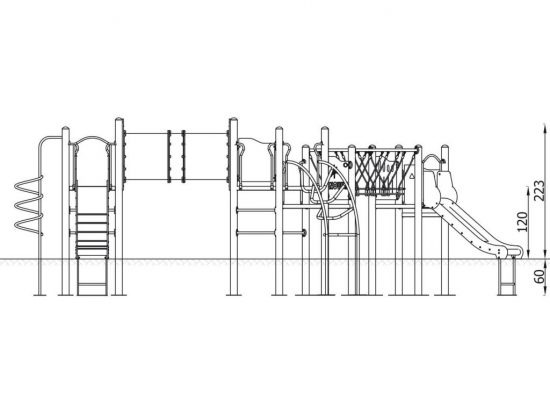

Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.Poles are fixed in the ground at a depth of 60 cm on steel anchors. Concrete according to the assembly instructions.
Attributes
Rubber tiles
This equepment can be supplied with a rubber tile safty earea.
Artificial grass
For more information about artificial grass click below to read more
Materials
Bearing posts are made of round, steel pipes with a diameter of 114 cm, fixed direct in the ground.
Antislip platforms.
Roofs, security elements and panels are made of HDPE (high durable polyethylene) boards with pattern cuttings.
Sliding surface is made of acid-proof, stainless steel sheet.
Ropes made of polypropylene with a steel core, thickness 16-18 mm, vandalism and UV resistant.
All fittings and connectors are weather and UV resistant.
Steel elements are protected against corrosion by zinc layer and powder paint coating.
