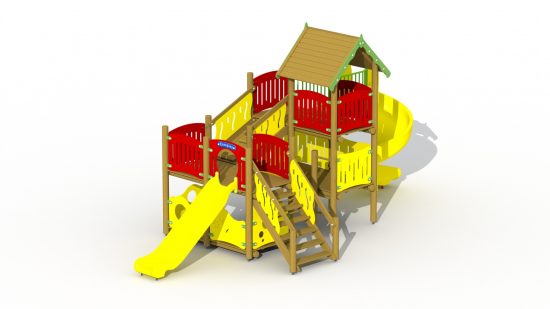

Pirates den (spiral slide + polymer low)

A two-story-high climbing tower with gable roof on top and a spiral slide connected to a lower section through an obliquely inclined fixed footbridge. There is a vertical ladder to climb the tower and a convenient staircase to the lower platform. Below this platform a playhouse was arranged that can be provided with two supplementary benches and one table (S001). A second low plastic slide has been installed. Following add-on components are also possible: bar with abacus (S003), high fireman’s pole (S004), monkey ladder (S005), climbing arch (S006), rock wall (S007), low fireman’s pole (S008), sand corner (S009), net climber (S013), low spiral fireman’s pole (S014), high spiral fireman’s pole (S018) and play panels (S033-S038). The roundwooden larch poles are fixed into or onto the ground using metal base supports. All metal parts are treated against rust and polyester coated and all nuts and bolts are completely covered with flower-shaped protection caps.

Materials

  • Type of wood: larch
  • Ladder rungs in ash
  • 12 cm thick round wooden poles cut outside the heart
  • Grooved roof boards with edge 22 mm thickness
  • Floor boards 22 mm
  • HDPE polyethylene sheet material
  • Climbing ladder with integrated rungs 40 mm thick
  • Staircase with integrated boards of 35 mm thickness
  • Plastic slide
  • Spiral slide in polyethylene
  • Galvanized metal base supports
  • Plastic clamps
  • Metal parts treated against rust and polyester coated

Attributes

  • Dimensions
    7,8 x 3,6 x 3,9 m
  • Fall height
    2,00 m
  • Age
    6-15
  • Assembly
    2p. - 27h.
  • Safety zone
    68 m²
  • Certification
    EN-1176
  • Concrete required
    Yes
