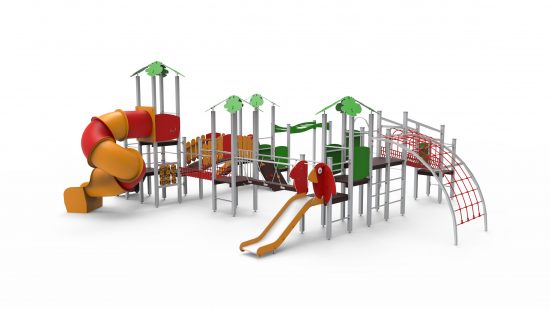

Julia 30045TM

Set Julia is an unusually rich composition of slides, entrance accommodation ladders, sets to overhead kicks, bridges and other agility elements. The project has been created, thinking about big, public playgrounds, where the quantity of playing children exceed 50 persons. The integrative elements make the game richer, and the variety of functions makes this set an excellent option for all-age groups. Set from the tropical version is a unique union of interesting colours with high quality of used materials. The set construction is made of galvanized steel painted in grey. Refills are the plastic HDPE of high quality.

Components
  • ‘Tic Tac Toe’ Interactive game: 1
  • Arc twisted net: 1
  • Balcony: 1
  • Climbing wall 90cm: 1
  • Coups set: 2
  • Curved bridge: 1
  • Diagonal rope tunnel: 1
  • Entry gangplank 90cm: 1
  • Fireman’s pole150cm: 1
  • Helix slide with a bridge65cm: 1
  • Horizontal ladder 244cm: 1
  • Mobile bridge: 1
  • Rope bridge50 cm: 1
  • Slide 90cm: 2
  • Tower with roof, platform20cm: 1
  • Tower with roof, platform85cm: 1
  • Tower with roof, platform 90cm: 2
  • Tower without roof, platform 150cm: 2
  • Tower without roof, platform 60cm: 1
  • Tower without roof, platform 90cm: 4
  • Vertical ladder: 7

Attributes

  • Width
    10,05 m
  • Length
    10,67 m

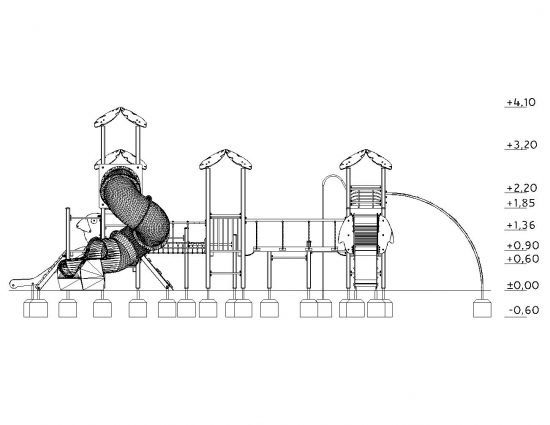

  • Height
    4,10 m

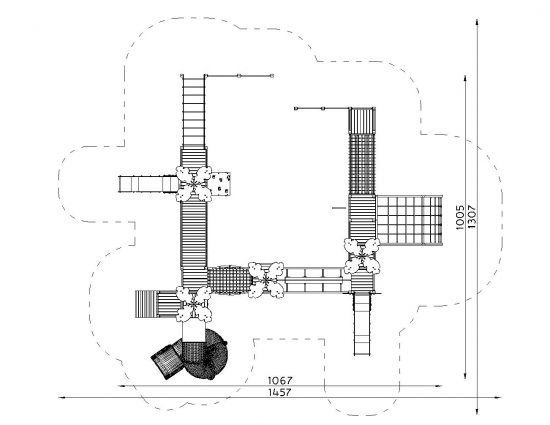

  • Minimum space required
    14,57 m x 13,07 m
  • HIC
    2.20 m
  • Impact area F
    130.73 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    2,70 x 0,75 x 0,50 m
  • Weight of heaviest item
    60 kg
