Jim integration 10006C

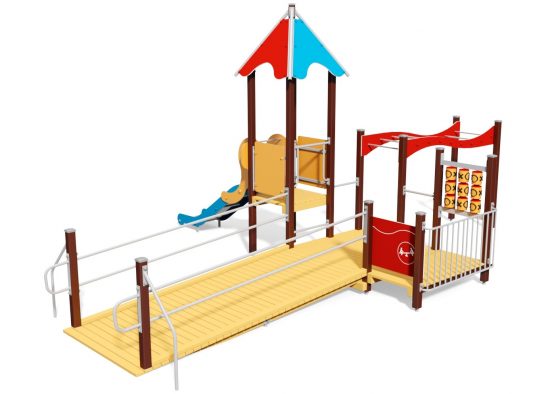

Jim integration set is a project which offers to disabled children the possibility of active participating in games with peers. The set requires a subgrade, which will enable simple and secure moving on the playground, like synthetic surface. As a product from the classic collection is available in glued pinewood. Accomodating Your diverse needs of completing the set with roofs or barriers, there are available in HDPE of high quality. The slides are made of stainless steel.

  • ‘Tic Tac Toe’ Interactive game: 1
  • Big platform 30 cm: 1
  • Driveway gangplank 30cm: 1
  • Horizontal ladder 244cm: 1
  • Slide 90cm: 1
  • Tower with roof, platform 90cm: 1
  • Vertical ladder: 1
  • Wide balcony: 1


  • Width
    5,25 m
  • Length
    7,40 m

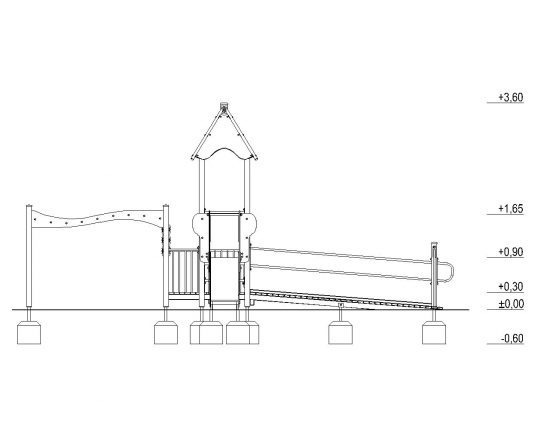

  • Height
    3,60 m

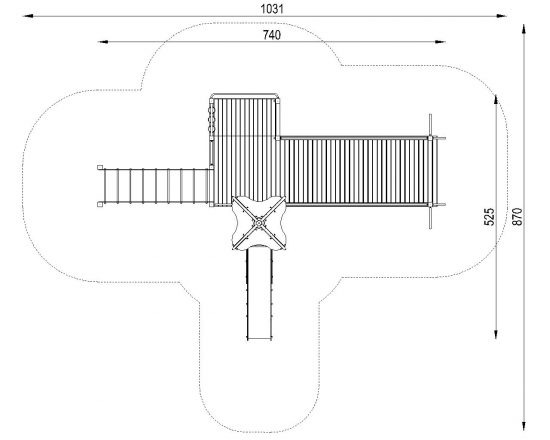

  • Minimum space required
    10,31m x 8,70 m
  • HIC
    1.65 m
  • Impact area F
    54.56 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    3,60 x 1,50 x 0,20 m
  • Weight of heaviest item
    150 kg
