Enterprise U (RAL 1001)

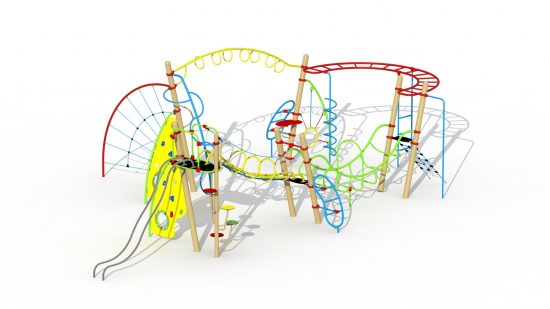

Challenging modern playground equipment for children aged 6 to 15. The Enterprise U has several vertical poles. Several playing elements are connected to the horizontal U-shaped ladder with rungs: spiral and straight fireman’s pole and a vertical ladder with rungs. At one side of the U-shaped ladder, you can find a climbing construction made out of 2 climbing poles, connected to each other by a bended ladder with rings. The heighest climbing pole has 3 elements. Via the large snake climber children can go to the top of the pole. A bended net, placed between the central climbing pole and a bended tube, allows children to climb at the same time, at different heights. It can also be climbed via a bended climbing wall made out of HDPE polyethylene panel with several climbing and crawling possibilities. A metal bean-shaped ladder, a ring fixed between 5 ropes and a fireman’s pole allow children to climb the lowest pole. Both climbing poles are connected to each other by a yellow ladder with rings. The other side of the U-shaped ladder has 4 poles with several climbing and sliding elements, o.a. a climbing net. A U-shaped bridge with U-stairs connects 4 poles with eachother. A bean-shaped ladder is connected to the last 2 poles. The last part has 2 vertical poles with diameter 89 and 127 mm. It can be climbed via a spiral staircase with round HDPE polyethylene stairs or via a bended climbing wall made out of HDPE polyethylene panel with several climbing and crawling possibilities. On top there is a lookout. One can leave the lookout via 2 sliding tubes or via a connection tunnel with HDPE polyethylene sliding platform.

Materials

  • Metal poles of 89 and 127 mm
  • Metal tubes 34, 43 and 48 mm
  • Metal parts polyester coated
  • Inox sliding tube 48 mm
  • Aluminium and plastic clamps
  • Plastic pole and protection caps
  • Sheet material and climbing grips in HDPE polyethylene
  • Ropes and nets in 16 mm polypropylene rope with steel-wire reinforcement
  • Flower-shaped protection caps in HDPE
  • The playground equipment is anchored in a concrete foundation

Attributes

  • Dimensions
    11,7 x 7,3 x 3,3 m
  • Fall height
    2,95 m
  • Age
    6 - 15
  • Assembly
    2p. - 24h.
  • Safety zone
    118,5 m²
  • Certification
    EN-1176
  • Concrete required
    Yes
