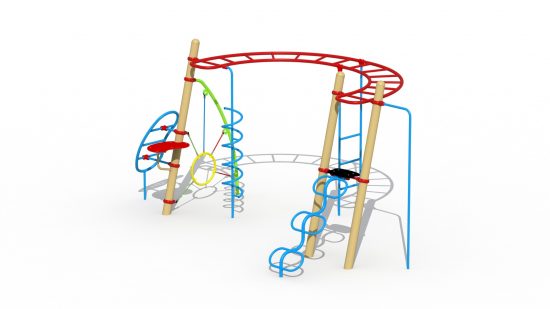

Atlantis U (RAL 1001)

Challenging modern playground equipment for children aged 6 to 15. It is built out of 3 poles with diameter 127 mm. Several playing elements are connected to the horizontal U-shaped ladder with rungs: spiral and straight fireman’s pole and a vertical ladder with rungs. At the beginning of the Atlantis U you can find a metal bean-shaped ladder, a ring fixed between 5 ropes and a start platform in HDPE polyethylene. The other side of the U-shaped ladder has 2 poles with a start platform in HDPE polyethylene. The platform can also be reached via the snake climber. All metal parts are treated against rust and polyester coated. The playground unit is fixed directly into the ground with concrete.

Materials

  • Metal poles of 127 mm diameter
  • Metal tubes 34, 43 and 48 mm
  • Metal parts polyester coated
  • Aluminium and plastic clamps
  • Plastic pole and protection caps
  • Sheet material and climbing grips in HDPE polyethylene
  • Ropes and nets in 16 mm polypropylene rope with steel-wire reinforcement

Attributes

  • Dimensions
    5,4 x 3,4 x 2,7 m
  • Fall height
    2,40 m
  • Age
    6 - 15
  • Assembly
    2p. - 8h.
  • Safety zone
    53 m²
  • Certification
    EN-1176
  • Concrete required
    Yes
