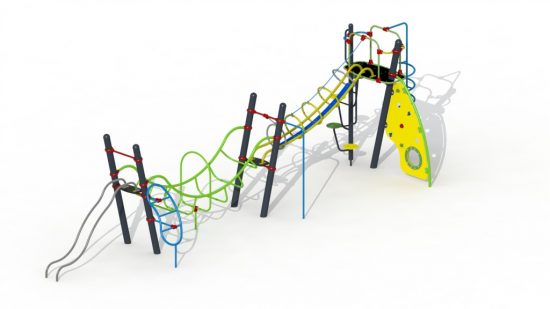

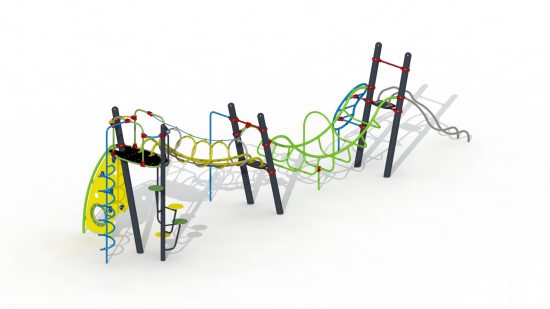

Apollo spiral 2

Challenging modern playground equipment for children aged 6 to 15. It is built out of 2 vertical poles with diameter 89 and 127 mm. It can be climbed via a spiral staircase with round HDPE polyethylene stairs or via a bended climbing wall made out of HDPE polyethylene panel with several climbing and crawling possibilities. The climbing wall has plastic climbing grips and is fixed to the pole with aluminium clamps. On top there is a lookout. The railing of this lookout is made out of 34 mm tubes which are connected with each other by means of clamps. One can leave the lookout via a spiral fireman’s pole or via a connection tunnel with HDPE polyethylene sliding platform. This connection tunnel is connected to a lower platform that is fixed between 2 poles of 127 mm. From this lower platform leaves a U shaped bridge with U stairs which is also connected to 2 other poles of 127 mm. Between these poles there is a platform of HDPE polyethylene to which 2 parallel inox slides and a bean shaped climbing ladder are fixed. All metal parts are treated against rust and all nuts and bolts are covered by flower-shaped protection caps. The metal tubes are polyester coated. The playground unit is fixed directly into the ground with concrete.

Materials

  • Metal poles of 89 and 127 mm
  • Metal tubes 34, 43 and 48 mm
  • Metal parts polyester coated
  • Inox sliding tube 48 mm
  • Aluminium and plastic clamps
  • Plastic pole and protection caps
  • Sheet material and climbing grips in HDPE polyethylene
  • Ropes in 16 mm polypropylene rope with steel-wire reinforcement

Attributes

  • Dimensions
    9,9 x 2,7 x 2,8 m
  • Fall height
    2,00 m
  • Age
    6 - 15
  • Assembly
    2p. - 14h.
  • Safety zone
    65 m²
  • Certification
    EN-1176
  • Concrete required
    Yes
