Playcenter

Alina
Alina

Alina 30013TM

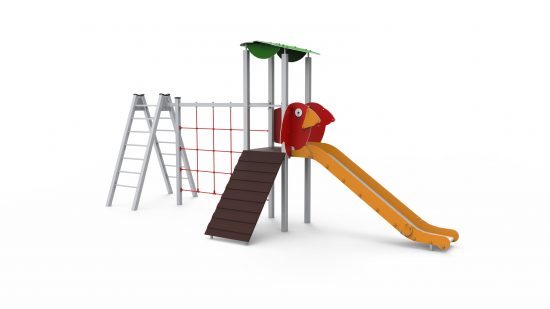

Alina set is a simple and esthetic project, consisted of a diagonal ladder, vertical playset, entrance accommodation ladder, covered tower and a slide. Set from the tropical version is a unique union of interesting colours with high quality of used materials. The set construction is made of galvanized steel painted in grey. Refills are the plastic HDPE of high quality.

Components
  • Diagonal ladder: 1
  • Entry gangplank36cm: 1
  • Slide36cm: 1
  • Tower with roof, platform36cm: 1
  • Vertical twisted net: 1

Attributes

  • Width
    2,88 m
  • Length
    7,11 m

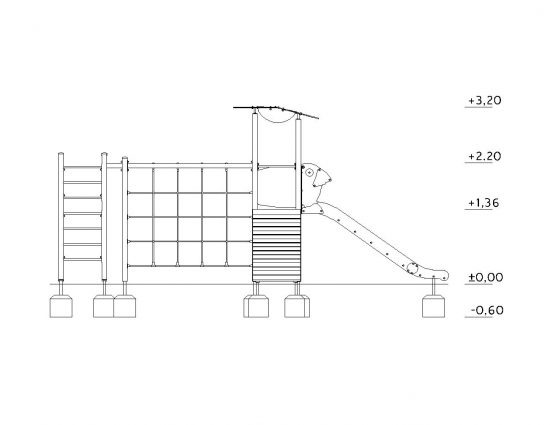

  • Height
    3,20 m

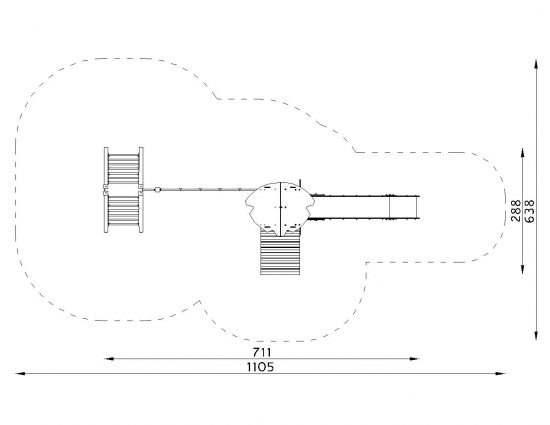

  • Minimum space required
    11,05 m x 6,38 m
  • HIC
    2.20 m
  • Impact area F
    48.47 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    3,30 x 0,75 x 0,50 m
  • Weight of heaviest item
    70 kg
