Playcenter

Alina
Alina

Alina 30013CM

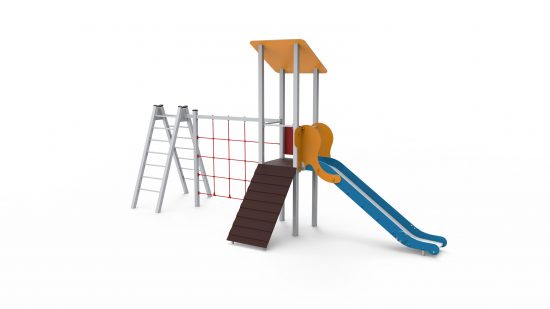

Alina set is a simple and esthetic project, consisted of a diagonal ladder, vertical playset, entrance accommodation ladder, covered tower and a slide. The device construction is made of galvanished steel painted in blue. Refills are the plastic HDPE of high quality and the slides made of stainless steel. . For people looking for an economic solution, there is a possibility of changing HDPE with waterproof plywood.

Components
  • Diagonal ladder: 1
  • Entry gangplank36cm: 1
  • Slide36cm: 1
  • Tower with roof, platform36cm: 1
  • Vertical twisted net: 1

Attributes

  • Width
    2,88 m
  • Length
    7,11 m

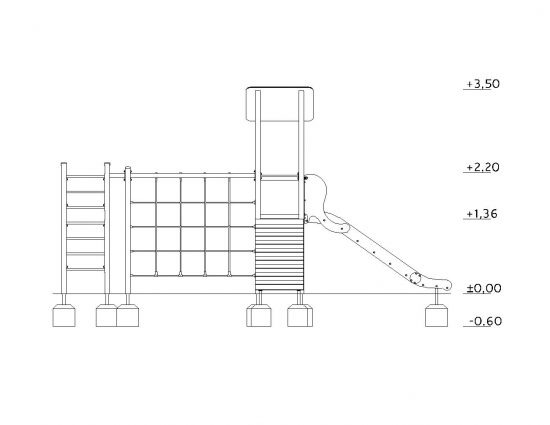

  • Height
    3,50 m

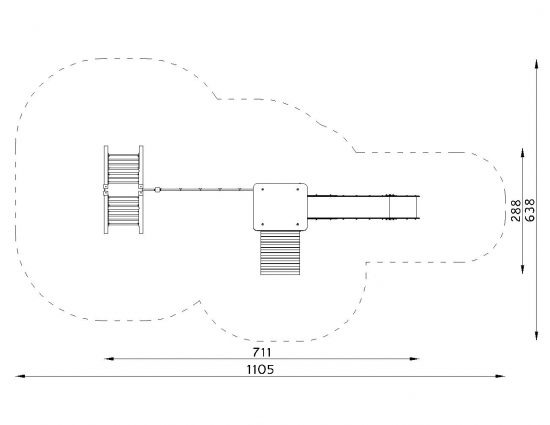

  • Minimum space required
    11,05 m x 6,38 m
  • HIC
    2.20 m
  • Impact area F
    48.47 m2
  • Depth of foundations
    -0,60 m
  • Dimensions of biggest part
    3,30 x 0,75 x 0,50 m
  • Weight of heaviest item
    70 kg
