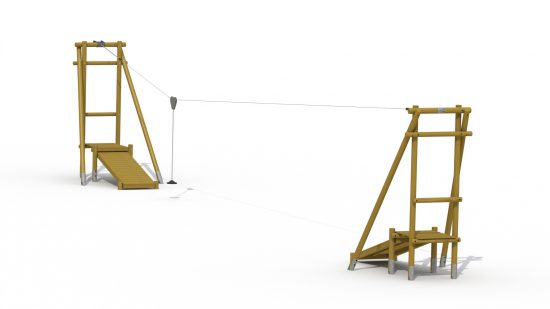

Aerial runway in wood

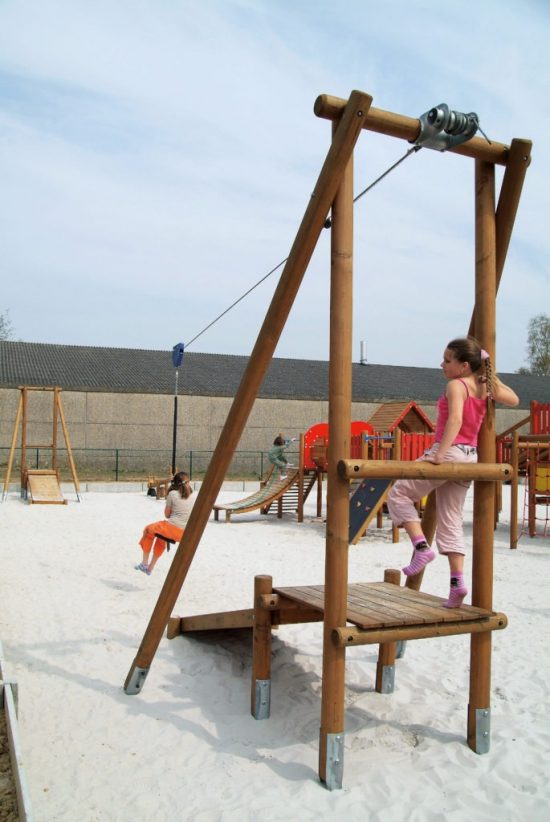

Playground equipment for children aged 6 to 15. This wooden aerial runway is a fun way to bridge a long distance. The aerial runway has 2 start platforms. The children can climb on the start platform and mount on the round rubber seat. This one is attached to the runner by a covered galvanized chain. The children walk from the start platform and slide in the direction of the other platform while seated on the rubber seat. The roundwooden larch poles have a diameter of 10 and 12 cm and are fixed into the ground by using metal base supports. All metal parts are treated against rust and all nuts and bolts are completely covered with plastic protection caps.

Materials

  • Type of wood: larch and oak
  • Round wooden poles 10 and 12 cm thickness cut outside the heart
  • Steel cable with tensioning mechanism 10 mm thick
  • Platform boards 22 and 35 mm thick
  • Round rubber seat on covered galvanized chain
  • Runner in stainless steel
  • Rubber mount with spring brake
  • Galvanized metal base supports
  • Plastic protection caps

Attributes

  • Dimensions
    20,7 x 2,3 x 3,6 m
  • Fall height
    0,90 m
  • Age
    6 - 15
  • Assembly
    2p. - 10h.
  • Safety zone
    97 m²
  • Certification
    EN-1176
  • Concrete required
    Yes
